Taiyo Cabletec Co., Ltd. 2PNCT
2PNCT LF is a cabtire cable with EP rubber insulation and chloroprene rubber sheath, suitable for power circuits of portable electrical equipment rated up to 600V, as well as fixed wiring requiring flexibility and bending durability. It uses tinned annealed copper strands, EP rubber insulation, and an oil-, flame-, and abrasion-resistant chloroprene rubber sheath. Compliant with JIS C 3327 and the Electrical Appliance and Material Safety Act (excluding ≥125 mm² and ≥8 cores). RoHS compliant (10 substances). Lightweight, thin design for superior handling with high current capacity.
Product Features
- Application: Power circuits of movable devices and flexible/fatigue-resistant fixed wiring ≤600V
• Flexibility: High flexibility thanks to EP rubber insulation + chloroprene sheath
• Durability: High reliability per JIS; long length supply available
• Environmental Resistance:
– Heat: Up to 80°C
– Oil: Resistant to cutting and hydraulic oils via chloroprene sheath
– Flame Retardance: JIS C 3005 (4.26.2 a) compliant
– Non-Migration: No plasticizer migration; R15 marking printed
– Others: Abrasion resistance, ozone resistance, high current rating
• Safety: RoHS compliant (2011/65/EU・2015/863)
Product Specifications
- Certifications: Electrical Appliance and Material Safety Act (0.75–100 mm², up to 8 cores), JIS C 3327 compliant
• Standards Compliance:
– JIS C 3152 (structure), JIS C 3005 (flame retardance)
– RoHS 2011/65/EU・2015/863 (10 substances)
• Ratings:
– Voltage: 600V
– Temperature: 80°C
• Flame Standards:
– JIS C 3005 (4.26.2 a) compliant
• Others:
– Minimum bending radius: ≥6× finished outer diameter

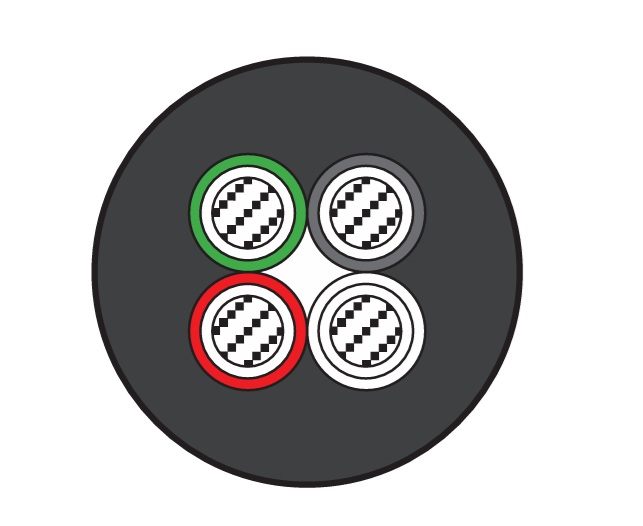

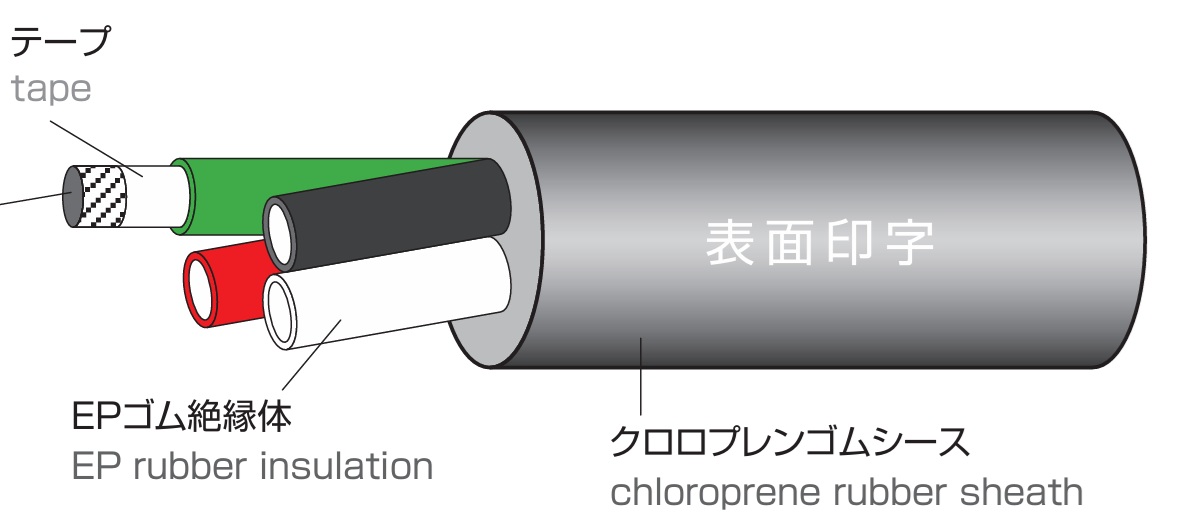

– Construction: EP rubber insulation / chloroprene rubber sheath
– Surface marking: “TAIYO-FUJI 2PNCT ○○mm² <PS>E FUJIDENSEN K.K”
– Standard Length: Long lengths available (cutting possible)
