Taiyo Cabletec Co., Ltd. 300V-EXT-2_2517

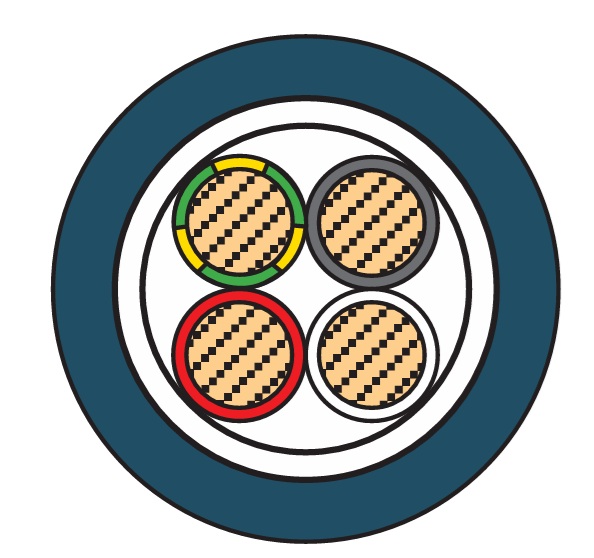

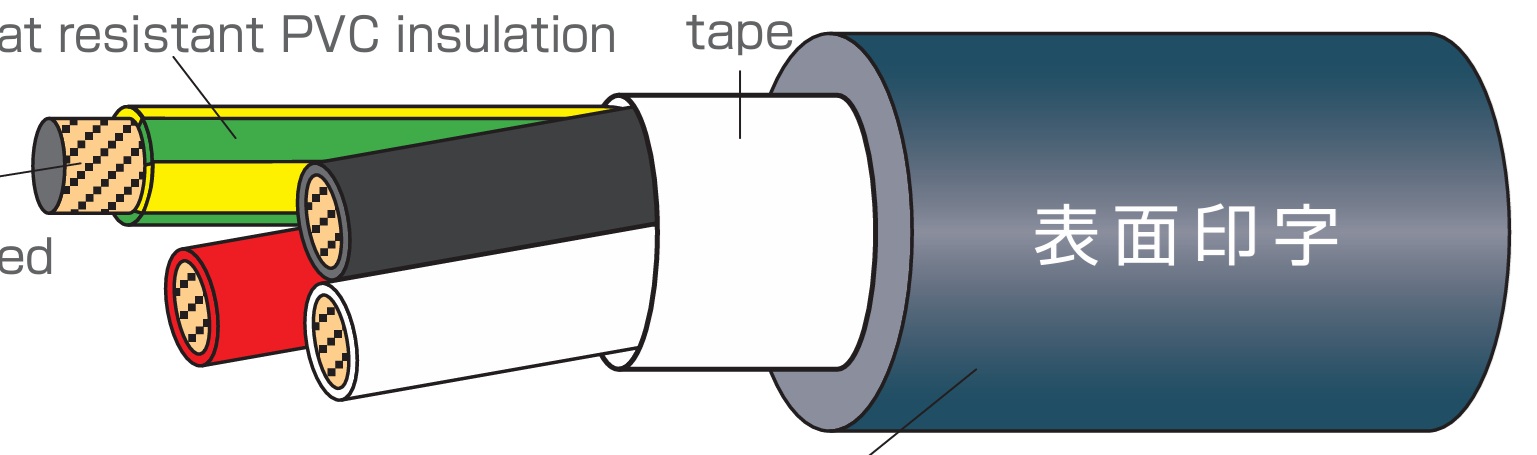

EXT-Ⅱ/2517 is a high-durability flexible cable designed for electronic equipment and robots. It uses specially ultra-fine stranded copper wires for the conductor, offering excellent flexibility and durability. The insulator is made of slick and heat-resistant PVC, while the sheath uses high-slick PVC with oil resistance, heat resistance, and flame retardancy, enabling long-term high-speed movement in cable carriers. It conforms to flame-retardant standards UL VW-1 and CUL FT1 and complies with the RoHS Directive (10 substances). Rated for 300V and 105°C, it is UL and CUL certified. The cable has passed more than 50 million cycles in movement tests (with actual capability of up to 100 million), making it ideal for high-reliability wiring in robots and industrial machinery.
Product Features
- Application: High-durability flexible cable for electronic equipment and robots
• Flexibility: High mobility with resistance to bending and twisting using ultra-fine conductors
• Durability: Compatible with cable carriers, cleared over 50 million movement cycles (actual 100 million)
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Sheath made of high oil-resistant PVC for industrial use
– Flame Retardance: Conforms to UL VW-1 / CUL FT1
– Low Friction: Slick PVC reduces wear for smooth operation
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) for 10 substances
Product Specifications
- Certifications: UL, CUL certified
• Standards Compliance:
– UL AWM STYLE 2517 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 300V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
