Taiyo Cabletec Co., Ltd. 300V-EXT-2-SB_2517

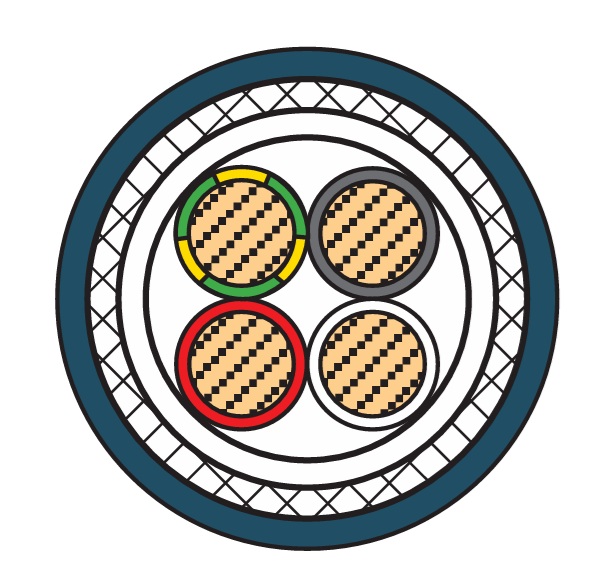

EXT-Ⅱ-SB/2517 is a high-durability, high-performance shielded cable ideal for wiring movable parts in electronic devices and robots. It uses specially ultra-fine stranded soft copper wires as conductors, with slick and heat-resistant PVC for insulation, and high-slick PVC with excellent oil, heat, and flame resistance for the sheath. Additionally, it features a tin-plated soft copper wire braid (shield) to counter external noise, ensuring high noise resistance. It has cleared over 50 million cycles in cable carrier tests (with actual performance up to 100 million) and offers excellent bending and torsion resistance. Rated at 300V and 105°C, it complies with UL VW-1 and CUL FT1 flame standards, as well as the RoHS Directive. It is ideal for industrial wiring requiring high-speed movement and reliability.
Product Features
- Application: Shielded, high-durability movable cable for electronic equipment and robots
• Flexibility: High bending and torsional performance using ultra-fine conductors
• Durability: Passed over 50 million cycles in cable carrier tests (actual 100 million)
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Ideal for industrial use with oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Low Friction: Smooth operation with slick PVC
– Noise Resistance: Shielded structure with tin-plated soft copper braid
• Safety: RoHS Directive compliant (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL certified
• Standards Compliance:
– UL AWM STYLE 2517 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 300V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
