Taiyo Cabletec Co., Ltd. CLEANSTAR MV 300V BK HF

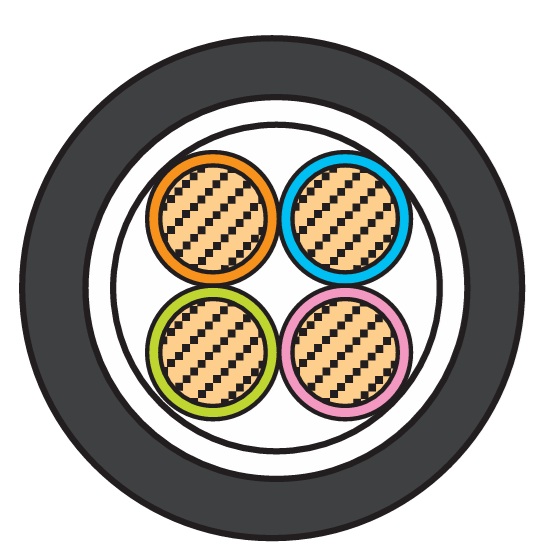

CLEANSTAR MV 300V BK HF is a halogen-free, low-dust, flexible robot cable designed for cleanroom environments. It uses ultra-fine soft copper wires as conductors, cross-linked polyethylene (XLPE) as the insulator, and a flame-retardant, oil-resistant halogen-free TPU as the sheath. The materials conform to IPA-certified ISO 14644-1 Class 1, making them suitable for clean work environments. Rated at 300V and 80°C, it complies with UL STYLE 21815 and CUL/CSA standards. It has passed over 20 million cycles in cable carrier tests and a proprietary 2000V/5-minute withstand voltage test. This is a halogen-free, environmentally conscious cable design.
Product Features
- Application: Halogen-free cable for movable wiring in cleanroom environments
• Flexibility: Flexible structure with ultra-fine conductor and soft XLPE insulation
• Durability: Proven over 20 million cycles in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Supports up to 80°C
– Oil Resistance: Moderate oil resistance with TPU sheath
– Flame Retardance: Complies with UL FT2 (horizontal flame test)
– Noise Resistance: Structural shielding performance
• Cleanliness: Uses ISO 14644-1 Class 1 compliant materials
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 21815 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 300V
– Temperature: 80°C
• Flame Retardant Standards:
– UL FT2 (horizontal flame test)
– CSA FT2
