Taiyo Cabletec Co., Ltd. CM/2464-1061/ⅡA LF
2026.01.12
CM/2464-1061/ⅡA LF is a multi-core/multi-pair fixed wiring cable for electronic equipment, suitable for RS232C and control signal wiring. It uses semi-rigid PVC for insulation and black PVC with oil, heat, and flexibility resistance for the sheath. Multi-pair types are also suitable for tray wiring. It complies with UL CL2/CM, AWM 2464, and CSA standards. Rated at 300V and 80°C, it passes UL VW-1, CUL FT1, and UL vertical tray flame tests, and conforms to NFPA 70/79 and the RoHS Directive (10 substances). The sheath is printed with “R15” to indicate RoHS compliance.
Product Features
- Application: Fixed wiring cable for RS232C and control signals (multi-core / multi-pair)
• Flexibility: Flexible PVC ensures excellent handling for internal wiring
• Durability: Supports tray wiring and fixed use
• Environmental Resistance:
– Heat Resistance: Up to 80°C (75°C for CL2/CM)
– Oil Resistance: High oil-resistant PVC for industrial use
– Flame Retardance: UL VW-1 / CUL FT1 / UL vertical tray compliant
– Noise Resistance: Basic shielding with tape structure
– Low Migration: Suppresses plasticizer migration to avoid affecting nearby devices
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 printed
Product Specifications
- Certifications: UL (CM, AWM 2464), CUL (CM, AWM ⅡA), CSA
• Standards Compliance:
– UL 444 (CM), UL 758 (AWM), UL 13 (CL2)
– CSA C22.2 No.210 / No.214
– NFPA 70 / 79, RoHS 2011/65/EU・2015/863
• Ratings:
– Voltage: 300V
– Temperature: 80°C (AWM), 75°C (CL2/CM)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– UL vertical tray test passed

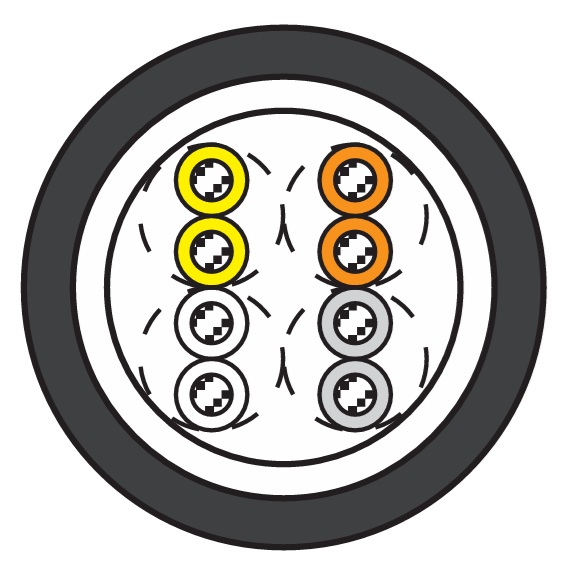

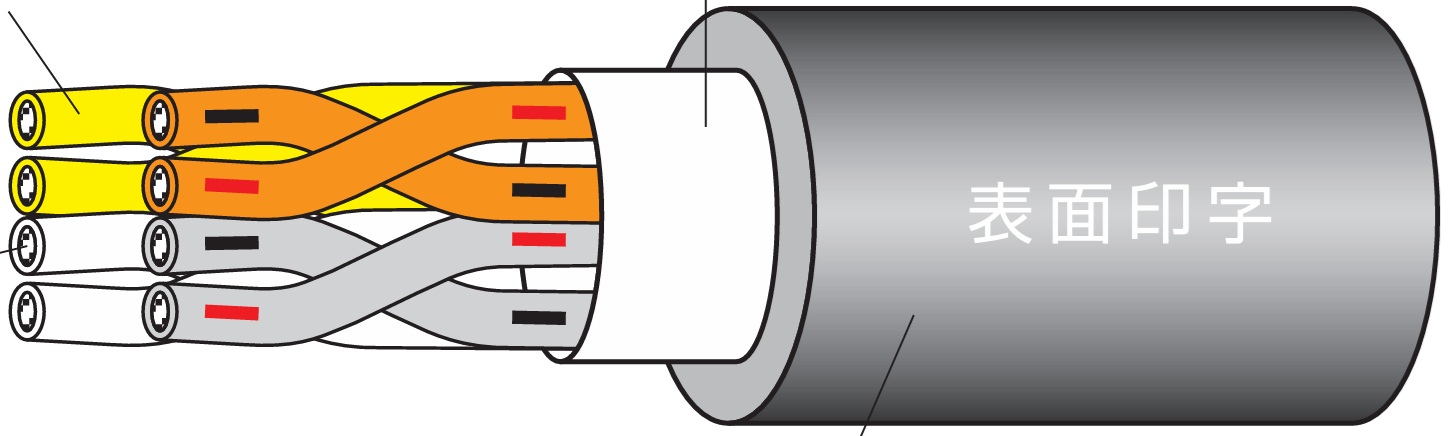

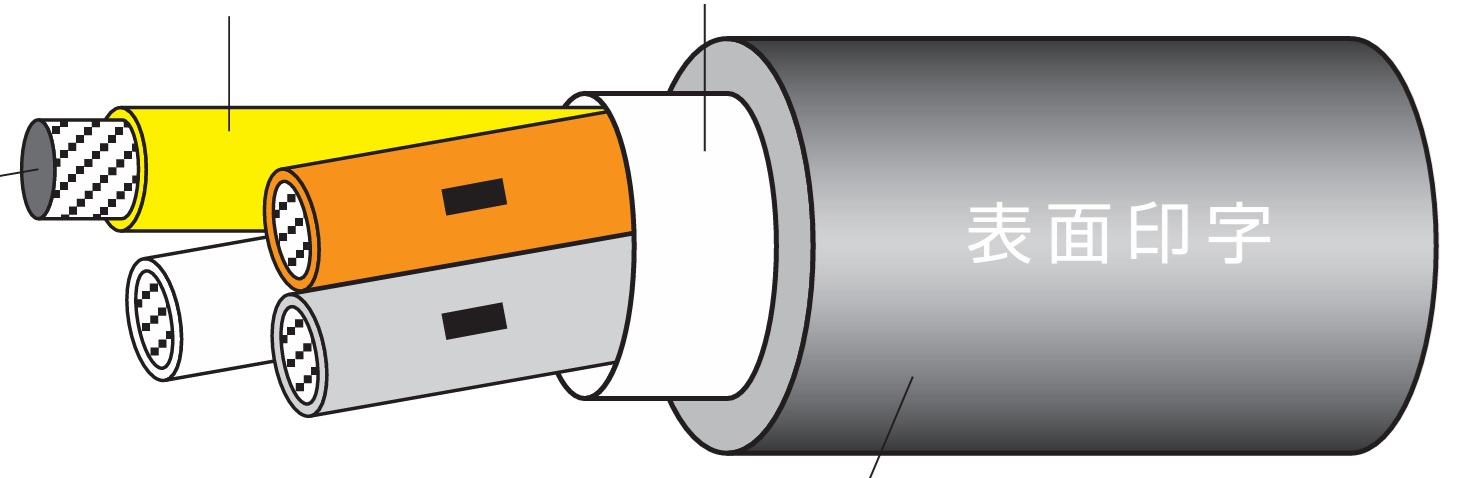

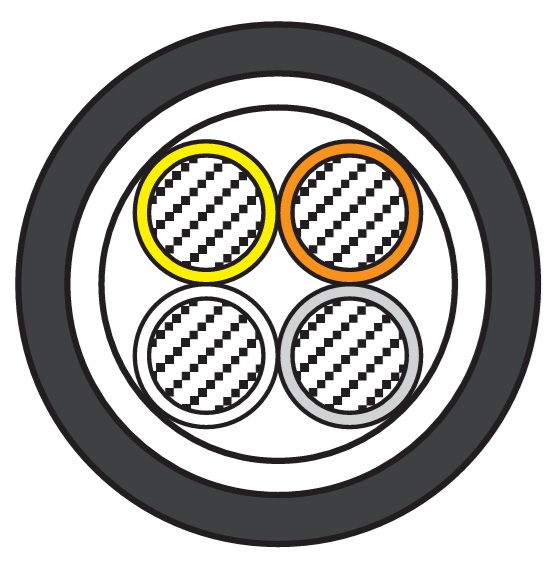

• Structure: 2C–4C, 2P–30P, compatible with AWG24/26
• Standard Length: 100m (varies by size)
