Taiyo Cabletec Co., Ltd. CM/2464-1061/ⅡA-SB LF
2026.01.12

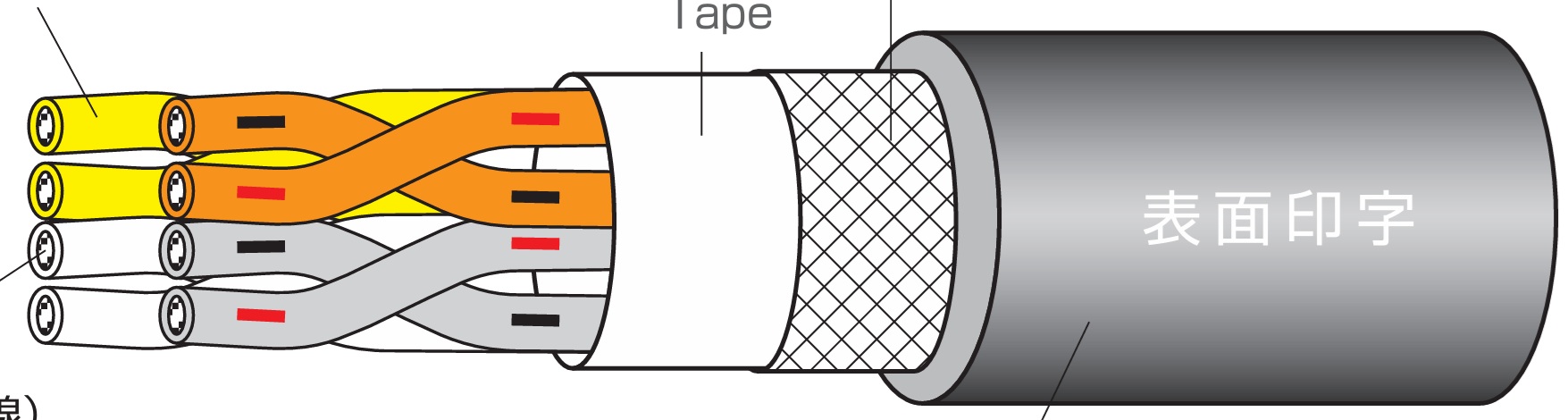

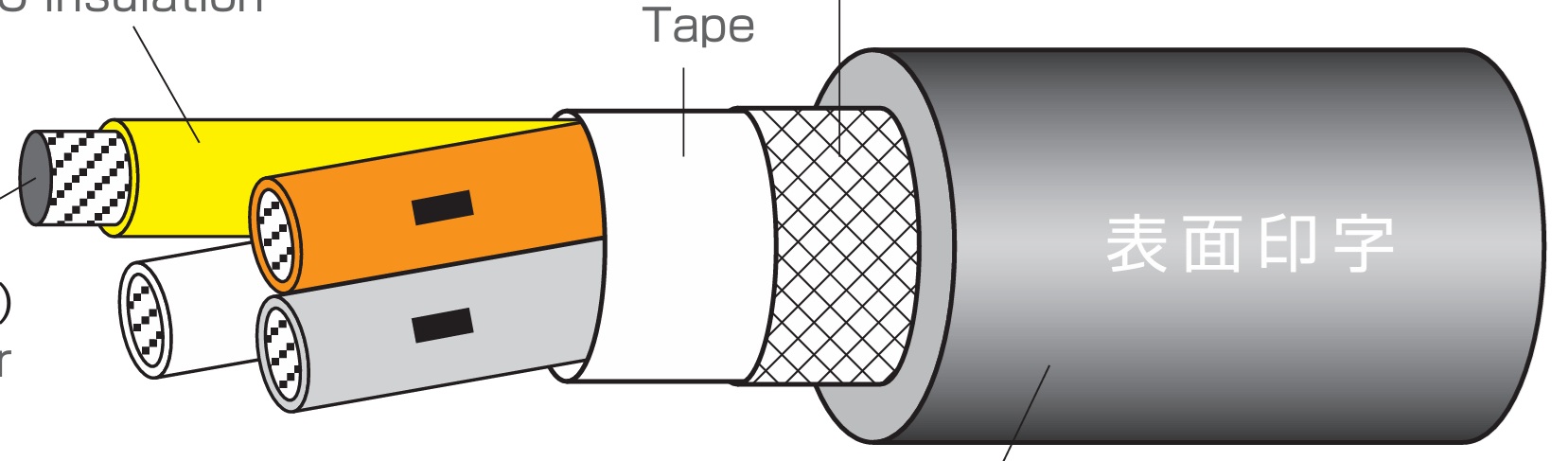

CM/2464-1061/ⅡA-SB LF is a multi-pair/multi-core shielded fixed wiring cable suitable for communication signals such as RS232C. It uses semi-rigid PVC for insulation and black oil-, heat-, and flexibility-resistant PVC for the sheath. The dual shield structure of aluminum tape and braided tinned copper wire provides excellent noise protection. Rated at 300V and 80°C, it is certified under UL AWM STYLE 2464, CM Listing, CUL, and CSA. It complies with flame retardancy standards UL VW-1, CUL FT1, and the UL vertical tray test, and is RoHS compliant (10 substances).
Product Features
- Application: Multi-core/multi-pair shielded cable for fixed wiring of RS232C signal lines
• Flexibility: Easy routing and wiring workability thanks to flexible PVC
• Durability: Robust structure designed for long-term fixed wiring use
• Environmental Resistance:
– Heat Resistance: Up to 80°C (AWM), 75°C (CL2/CM)
– Oil Resistance: High oil-resistant PVC sheath for industrial use
– Flame Retardance: Complies with UL VW-1 / CUL FT1, UL vertical tray test passed
– Noise Resistance: Excellent shielding with aluminum tape + braid
– Low Migration: Suppresses plasticizer migration to protect surrounding devices
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 printed
Product Specifications
- Certifications: UL (CM, AWM 2464), CUL (CM, AWM ⅡA), CSA
• Standards Compliance:
– UL 758 (AWM), UL 444 (CM), UL 13 (CL3 equivalent)
– CSA C22.2 No.210 / No.214
– NFPA 70 / 79, RoHS 2011/65/EU・2015/863 (10 substances)
• Ratings:
– Voltage: 300V
– Temperature: 80°C (AWM), 75°C (CM)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– UL vertical tray test passed
• Structure: Multi-pair only (e.g., 2P–30P, AWG28)
• Standard Length: 100m
