Taiyo Cabletec Co., Ltd. EM-ECTF/F HF
2026.01.13

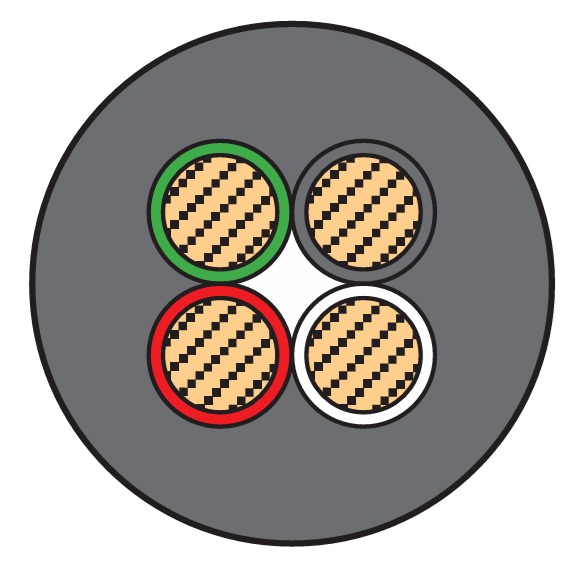

EM-ECTF/F HF is a halogen-free, flame-retardant flexible cord designed for fixed indoor wiring of small electrical devices rated up to 300V. It uses stranded annealed copper conductors and halogen-free flame-retardant polyolefin for both insulation and sheath, offering low smoke, non-migratory properties, and cold resistance down to –40°C. Rated at 300V / 75°C, it complies with JIS C 3102, JIS C 3005 (flame retardant), the Electrical Appliance and Material Safety Act (PSE), and RoHS (10 substances). “R15” is printed on the sheath.
Product Features
- Application: Fixed indoor wiring and lead wires for devices ≤300V
• Flexibility: Excellent routing with soft polyolefin insulation
• Durability: Halogen-free design ensures high environmental resistance and long life
• Environmental Resistance:
– Heat: Rated up to 75°C
– Cold: Operable down to –40°C
– Flame Retardance: JIS C 3005 (4.26.2 b) compliant
– Non-Migration: No plasticizer migration; safe for ABS / PS resins
– Low Smoke: Halogen-free material reduces corrosive gas and smoke
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking on surface
Product Specifications
- Certifications: Compliant with Electrical Appliance and Material Safety Act (PSE)
• Standards Compliance:
– JIS C 3102 (conductor)
– JIS C 3005 (4.26.2 b) (flame retardant)
– RoHS 2011/65/EU・2015/863 (10 substances)
• Ratings:
– Voltage: 300V
– Temperature: 75°C
• Flame Standard: JIS C 3005 (4.26.2 b) compliant
• Others:
– Sizes: 0.75–2 mm², available in 2C, 3C, 4C
– Standard Length: 100m / 500m (inquire for details)
– Surface Marking: “EM-ECTF/F ○○mm² <PS>E ◇◇ TY TAINEN HF R15”
