Taiyo Cabletec Co., Ltd. EM-KIE/F HF
2026.01.13

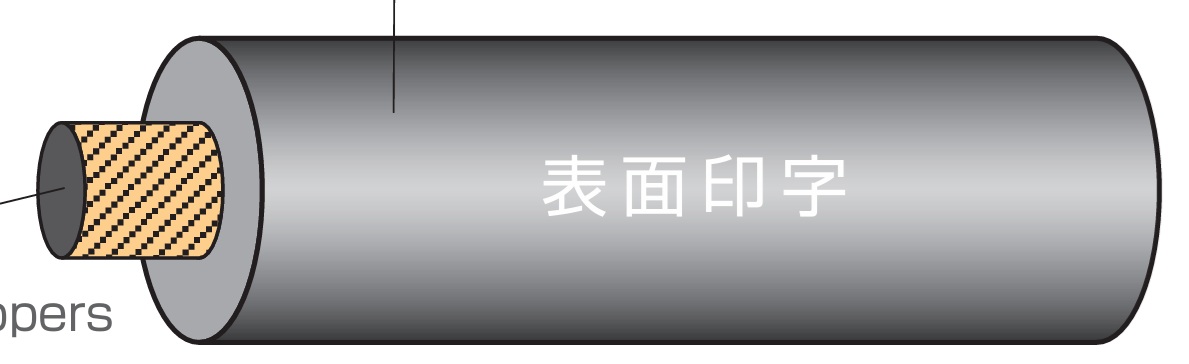

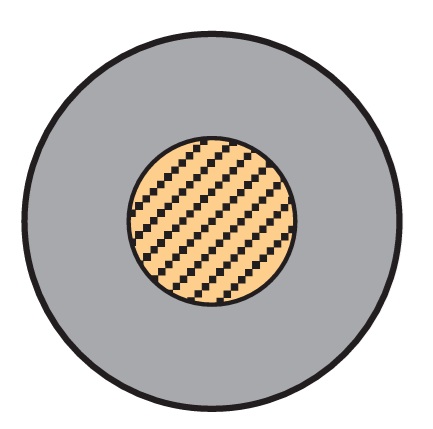

EM-KIE/F HF is a halogen-free, flame-retardant, cold-resistant, and flexible single-core cable for fixed wiring inside electrical equipment rated up to 600V. It features a flexible stranded copper conductor and halogen-free, low-smoke, flame-retardant polyethylene insulation. Rated at 600V / 75°C, it complies with JIS C 3612, JIS C 3316, and the Electrical Appliance and Material Safety Act (for 0.75–5.5 mm²). It is RoHS compliant (10 substances) and marked with “R15”. It can be used in environments as cold as –50°C.
Product Features
- Application: Single-core cable for internal fixed wiring of electrical equipment up to 600V
• Flexibility: Excellent routing performance with flexible stranded conductor and soft PE
• Durability: Flame-retardant and non-migratory PE enables long-term stable performance
• Environmental Resistance:
– Heat Resistance: Up to 75°C
– Cold Resistance: Operable down to –50°C
– Flame Retardance: JIS C 3005 4.26.2(b) compliant; ≥8mm² equivalent to UL VW-1
– Non-Migration: Plasticizer-free and safe for ABS/PS resins
– Low Smoke: Halogen-free structure minimizes smoke and corrosive gas emission
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking
Product Specifications
- Certifications: Electrical Appliance and Material Safety Act (for 0.75–5.5 mm²)
• Standards Compliance:
– JIS C 3612, JIS C 3316 (conductor structure)
– JIS C 3005 4.26.2(b) (flame retardance)
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 600V
– Temperature: 75°C
• Flame Standard: JIS C 3005 4.26.2(b) compliant
• Others:
– Sizes: 0.5–5.5 mm² (0.5 mm² not covered by Electrical Appliance and Material Safety Act)
– Minimum Bending Radius: Designed for fixed wiring
– Standard Length: 100m (inquire for details)
