Taiyo Cabletec Co., Ltd. 1000V RFX-SB LF
2026.01.19

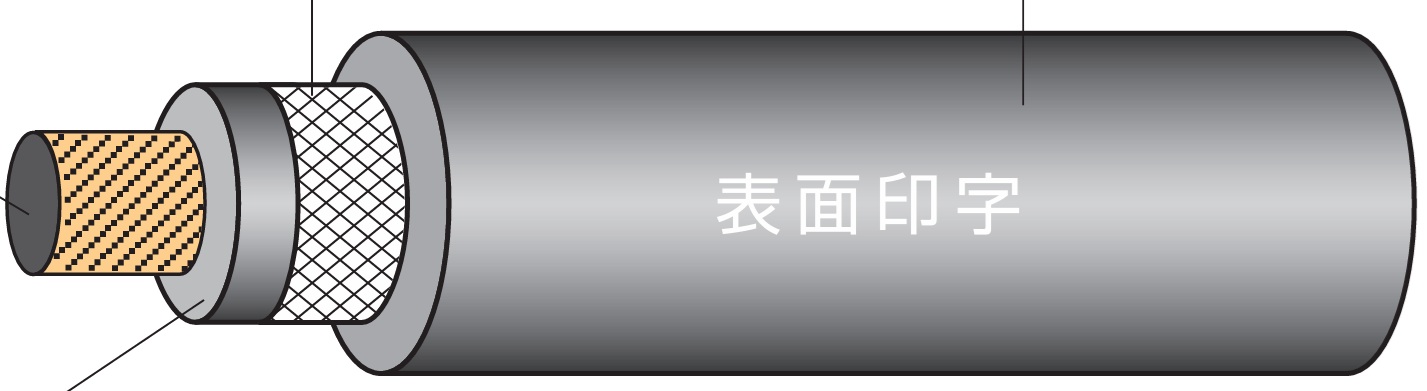

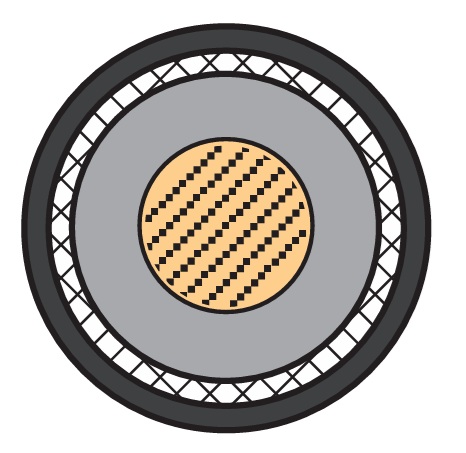

1000V RFX-SB LF is a high-voltage, shielded, and highly flexible cable designed for power and internal equipment wiring. It features fine stranded copper conductors, highly flexible and heat-resistant PVC insulation, and an oil-resistant, heat-resistant, flame-retardant PVC sheath. With a tin-plated copper braid shield, it reduces external noise interference. Compliant with UL STYLE 10678 (1000V, 90°C), it has proven durability of over 10 million cycles in cable carrier tests. RoHS compliant, it is ideal for use in tight spaces and movable parts of machinery.
Product Features
- Application: High-voltage, shielded flexible cable for power and internal equipment wiring
• Flexibility: Excellent bendability with fine stranded conductors and soft heat-resistant PVC
• Durability: Proven over 10 million cycles in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Rated 90°C (UL compliant)
– Oil Resistance: Good resistance to lubricants and hydraulic oils (Grade B–A)
– Flame Retardance: Conforms to UL VW-1
– Noise Resistance: Tin-plated copper braid shielding reduces external noise impact
• Other: Wire colors: black and orange (orange is made-to-order), available in 100m standard rolls
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL certified
• Standards Compliance:
– UL AWM STYLE 10678 (U.S. standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 1000V
– Temperature: 90°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
