Taiyo Cabletec Co., Ltd. EXT-01G/2517 300V LF

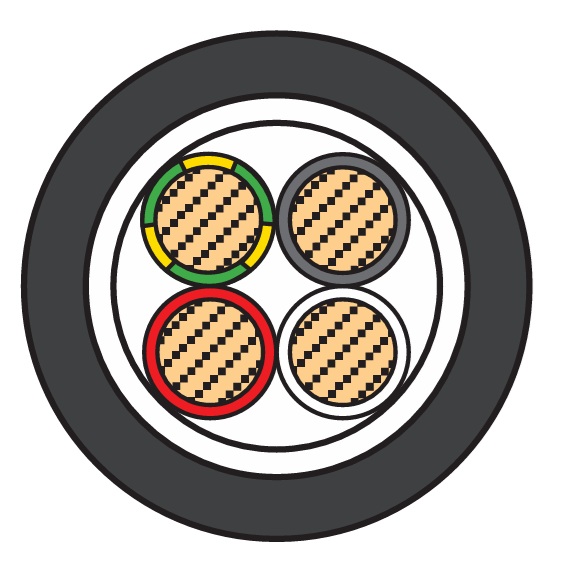

EXT-01G/2517 300V LF is a flexible, high-voltage robot cable ideal for high-speed movable parts in electronic devices and robots. It uses ultra-fine soft copper conductors with oil- and heat-resistant PVC for both insulation and sheath. It has cleared over 20 million cycles in cable carrier tests and complies with UL STYLE 2517, CUL, and CSA standards. With a high rating of 300V and 105°C, it is suitable for both control and power systems. It is RoHS compliant and supports constructions including a Y/G ground wire. In addition to UL/CSA standards, it also passes a proprietary withstand voltage test of 2000V for 5 minutes.
Product Features
- Application: High-voltage, flexible cable for movable parts in electronic equipment and robots
• Flexibility: Excellent bending and flexibility with ultra-fine conductors
• Durability: Cleared over 20 million cycles in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Uses highly oil-resistant PVC insulation and sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
• Other: Supports constructions with Y/G ground wire, passed 2000V/5-minute withstand voltage test
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 2517 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 300V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
