Taiyo Cabletec Co., Ltd. EXT-01G-SB/20276 LF

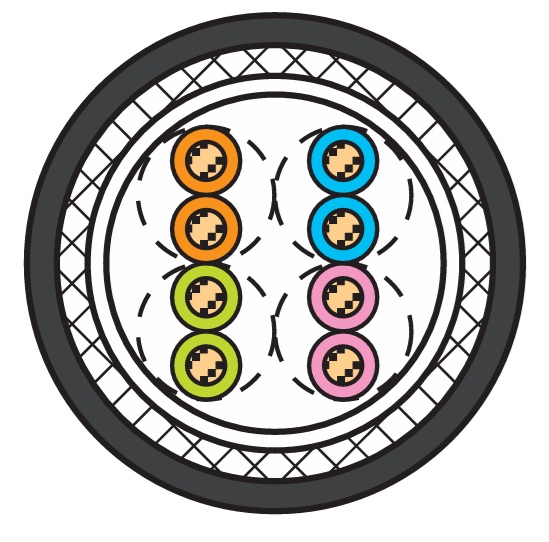

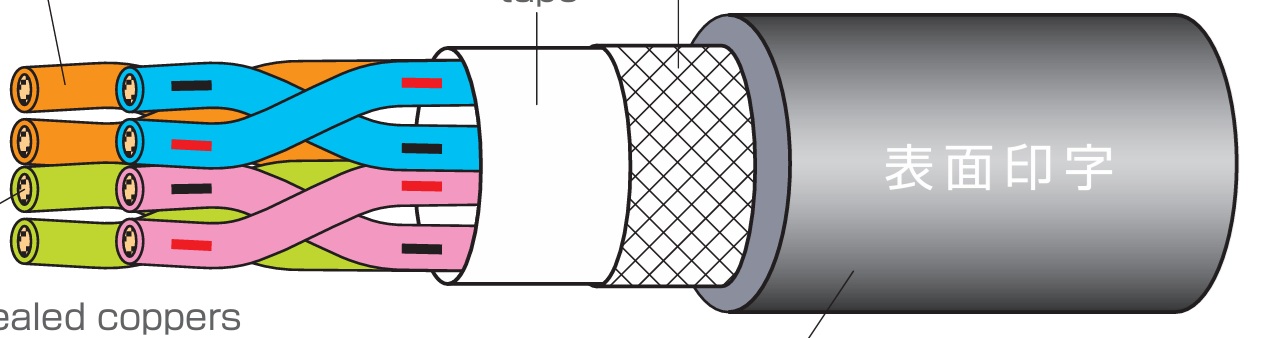

EXT-01G-SB/20276 is a shielded flexible robot cable with excellent noise suppression for high-speed motion environments. It features ultra-fine soft copper conductors, oil-resistant and heat-resistant PVC insulation and sheath, achieving both flexibility and high durability. A shield structure using tin-plated soft copper braid protects signals from external noise. The cable has proven durability with over 20 million cycles in cable carrier tests. Rated at 30V and 80°C, it complies with UL STYLE 20276 and CUL, and meets the RoHS Directive. Ideal for applications requiring reliable and noise-resistant wiring in light-motion environments.
Product Features
- Application: Shielded cable ideal for light-motion sections of robots and electronic devices
• Flexibility: Flexible structure with ultra-fine conductor and PVC insulation/sheath
• Durability: Over 20 million cycles in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Supports up to 80°C
– Oil Resistance: Both insulation and sheath use oil-resistant PVC
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Noise Resistance: High shielding performance with tin-plated copper braid
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL certified
• Standards Compliance:
– UL AWM STYLE 20276 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 30V
– Temperature: 80°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
