Taiyo Cabletec Co., Ltd. EXT-Ⅱ-SB/20276 LF

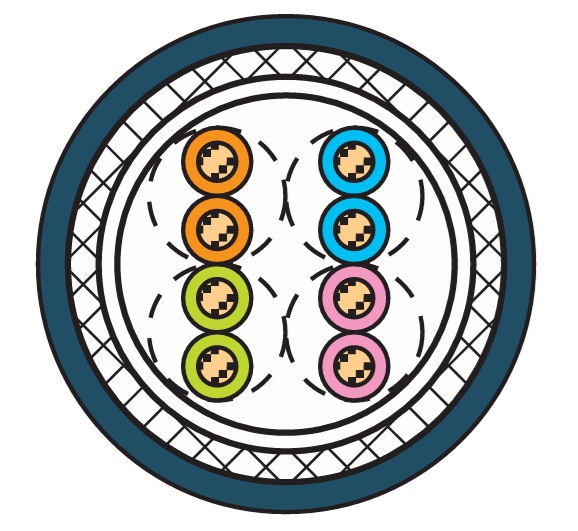

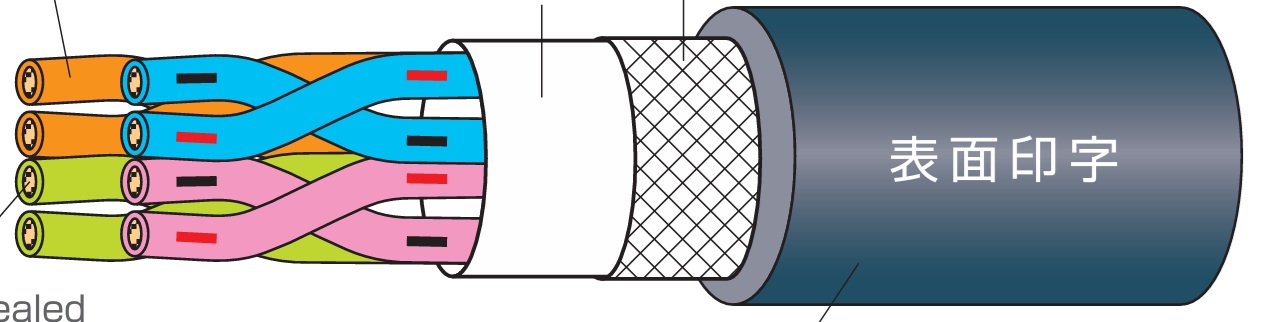

EXT-Ⅱ-SB/20276 LF is a shielded multi-pair robot cable designed for high-speed movable parts in electronic equipment and robots. It uses specially fine stranded copper wires as conductors, with slick, heat-resistant, oil-resistant, and flame-retardant PVC for insulation and sheath. A shield of tin-plated soft copper wire braid ensures high reliability even in noisy environments. Compliant with UL STYLE 20276, CUL FT1, and CSA standards, it is rated at 30V and 80°C. Cable carrier tests have proven durability beyond 50 million cycles (up to 100 million), and it also conforms to the RoHS Directive.
Product Features
- Application: Shielded robot cable for high-speed movable parts of electronic equipment and robots
• Flexibility: Excellent handling performance with ultra-fine conductors and slick PVC
• Durability: Over 50 million cycles in cable carrier tests (up to 100 million in practice)
• Environmental Resistance:
– Heat Resistance: Rated for 80°C
– Oil Resistance: Uses high oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Low Friction: Uses slick sheath materials
– Noise Resistance: High shielding structure with tin-plated soft copper braid
• Safety: RoHS Directive compliant (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certification: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 20276 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulation)
• Ratings:
– Voltage: 30V
– Temperature: 80°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
