Taiyo Cabletec Co., Ltd. EXT-Ⅱ-SB/2501

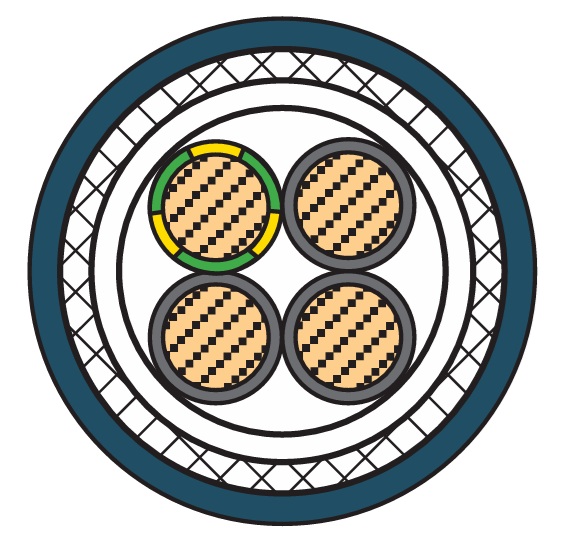

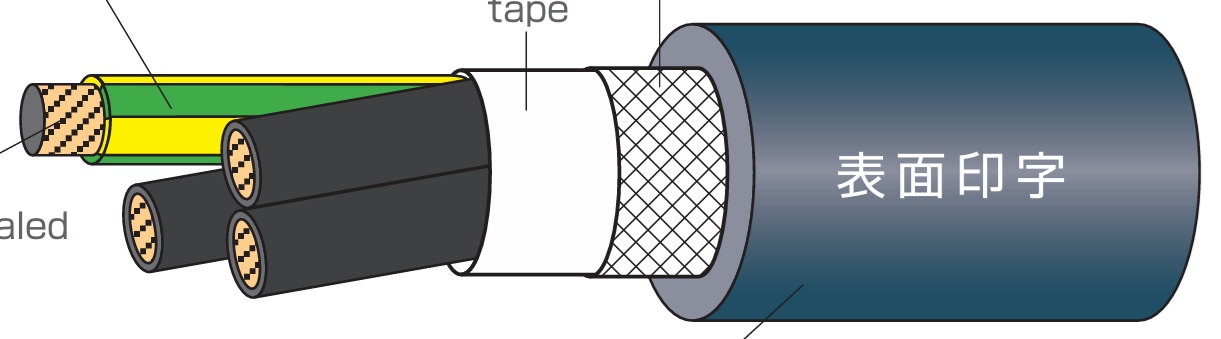

EXT-Ⅱ-SB/2501 is a high-voltage, shielded flexible cable ideal for the movable parts of electronic equipment and robots. It uses specially ultra-fine stranded soft copper wires as conductors, with slick and heat-resistant PVC for insulation, and highly oil-resistant, heat-resistant, and flame-retardant PVC for the sheath. In addition, it features a shielding structure with a tin-plated soft copper wire braid for noise countermeasures. It supports a rating of 600V and 105°C, conforming to UL STYLE 2501 and CUL standards. The cable has proven durability of over 50 million cycles in cable carrier tests (actual performance up to 100 million), and also complies with the RoHS Directive (10 substances). It is a highly reliable industrial flexible cable with excellent noise resistance.
Product Features
- Application: Shielded, high-durability flexible cable for electronic equipment and robots
• Flexibility: High bending and torsional performance using ultra-fine conductors
• Durability: Passed over 50 million cycles in cable carrier tests (actual 100 million)
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Uses highly oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Low Friction: Smooth operation using slick PVC
– Noise Resistance: Shielded structure with tin-plated soft copper braid
• Safety: RoHS Directive compliant (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL certified
• Standards Compliance:
– UL AWM STYLE 2501 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 600V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
