Taiyo Cabletec Co., Ltd. EXT-X-SB/2501

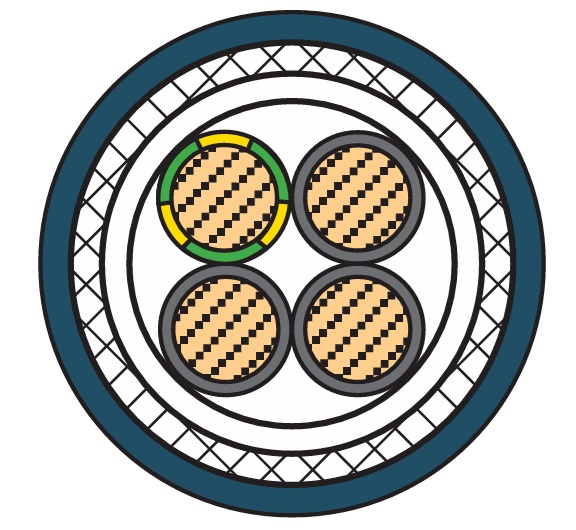

EXT-X-SB/2501 is a high-voltage, highly flexible, shielded robot cable designed for power wiring in electronic equipment and robots. It employs fine stranded conductors, high-slick and heat-resistant PVC for insulation, and oil-resistant, heat-resistant, and flame-retardant PVC for the sheath. Additionally, it features a shielding structure using a tin-plated soft copper braid to enhance noise suppression. It supports a high rating of 600V and 105°C, certified to UL STYLE 2501 and CUL. It has passed over 50 million cycles in cable carrier tests (actual performance up to 100 million) and complies with the RoHS Directive. Ideal for industrial applications requiring high current, high durability, and low noise.
Product Features
- Application: High-voltage, shielded flexible cable for electronic equipment and robots
• Flexibility: Excellent bending and torsional performance using fine stranded conductors
• Durability: Passed over 50 million cycles in cable carrier tests (actual 100 million)
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Uses highly oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Low Friction: Smooth operation with high-slick materials
– Noise Resistance: Shielded structure with tin-plated copper braid
• Safety: RoHS Directive compliant (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL certified
• Standards Compliance:
– UL AWM STYLE 2501 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 600V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
