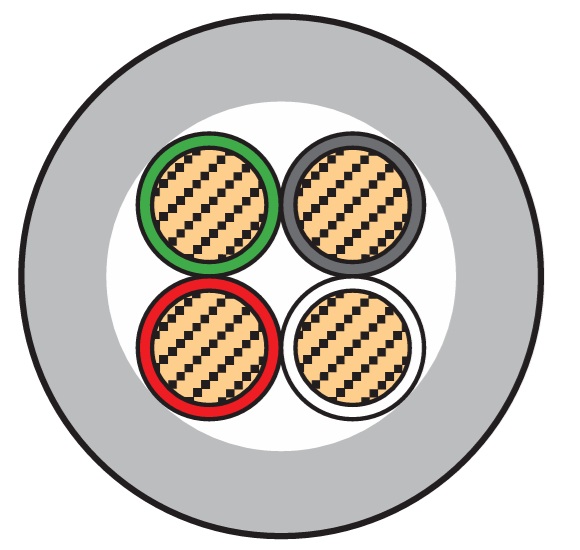

Taiyo Cabletec Co., Ltd. VCTF LF
VCTF LF is a vinyl cabtire round cord (for fixed use) designed for internal wiring of compact electrical appliances rated at 300V or below. It uses stranded annealed copper conductors and PVC insulation and sheath with flexibility, heat resistance, and flame retardance. Core identification is easy via insulation colors. Complies with JIS C 3306 for 2–4 cores (0.75–2 mm²) and with the Electrical Appliance and Material Safety Act for 0.75–3.5 mm² (0.3 / 0.5 mm² limited to <100V). RoHS compliant (10 substances), with “R15” marking on the surface. Standard length is 100 meters.
Product Features
- Application: For indoor fixed wiring of small devices rated at ≤300V
• Flexibility: Flexible PVC sheath enables excellent routing and handling
• Durability: High reliability due to JIS C 3306 and PSE compliance
• Environmental Resistance:
– Heat Resistance: Up to 60°C
– Oil Resistance: Standard oil-resistant PVC
– Flame Retardance: JIS C 3005 4.26.2(b) compliant (UL VW-1 equivalent for ≥8 mm²)
– Non-Migration: Suppresses plasticizer effects on ABS/PS resins
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking present
Product Specifications
- Certifications: Electrical Appliance and Material Safety Act (0.75–3.5 mm²), JIS C 3306 (2–4 cores, 0.75–2 mm²)
• Standards Compliance:
– JIS C 3102 (conductor), JIS C 3005 (flame retardant)
– RoHS 2011/65/EU・2015/863 (10 substances)
• Ratings:
– Voltage: 300V
– Temperature: 60°C
• Flame Standard:
– JIS C 3005 4.26.2(b) compliant
• Others:
– Core Identification: Colored insulation or color dot marking
– Standard Length: 100m (cut lengths available by size)
– Marking example: “○○mm² VCTF <PS>E [Year] LFV R15 TAIYO・TEIKOKU”
