Taiyo Cabletec Co., Ltd. Hyper Soft (HPF) #300 LF
2026.02.28

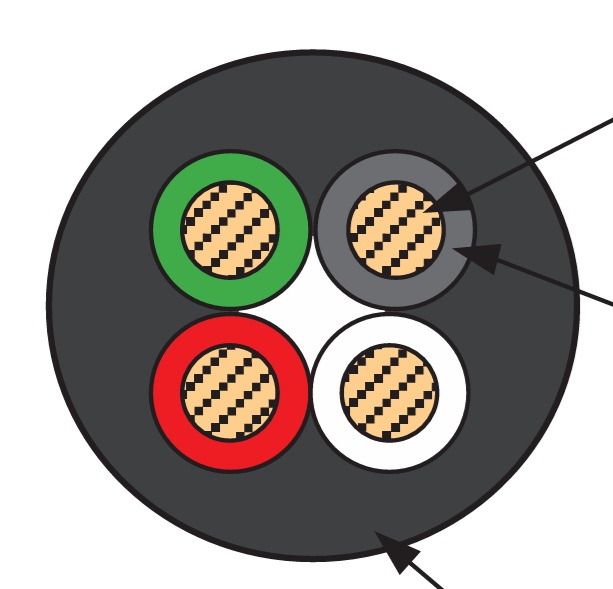

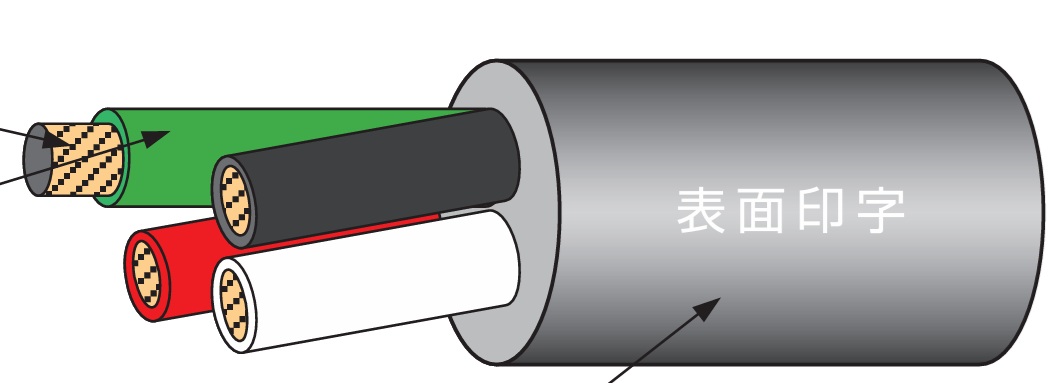

Hyper Soft (HPF) #300 LF is a flexible vinyl cabtire cord (for fixed use) designed for applications below 300V in oily and high-temperature environments. It features stranded annealed copper conductors, heat-resistant PVC insulation, and a matte black oil-, heat-, and flexibility-resistant PVC sheath. With excellent flexibility and oil resistance, it is ideal for machinery and power wiring. Rated at 300V / 75°C, it is compliant with JIS C 3102, JIS C 3005 flame retardant standards, CMJ-registered with an “F” mark, and RoHS compliant (10 substances).
Product Features
- Application: Fixed wiring in machine tools and oil/high-temperature environments
• Flexibility: Excellent routing enabled by stranded conductors and flexible PVC
• Durability: Long-term usability with heat- and oil-resistant PVC
• Environmental Resistance:
– Heat: Rated up to 75°C
– Oil: Resistant to cutting oil, hydraulic oil, etc.
– Flame Retardance: Compliant with JIS C 3005 (4.26.2 b), CMJ “F” mark certified
– Non-Migration: No plasticizer migration; safe for ABS and PS resins
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: PSE (Electrical Appliance and Material Safety Act), CMJ (F mark)
• Standards Compliance:
– JIS C 3102 (conductor), JIS C 3005 (flame retardant)
– RoHS 2011/65/EU・2015/863 (10 substances)
• Ratings:
– Voltage: 300V
– Temperature: 75°C
• Flame Standards:
– JIS C 3005 (4.26.2 b), CMJ vertical flame test passed
• Others:
– Sizes: 0.3–2 mm² (2C–30C supported)
– Marking: “○○mm² Hyper Soft #300 Oil/Heat Resistant TEIKOKU <PS>E LFV R15 -F-”
– Standard Length: 100m / 500m (cut lengths available by size)
– Allowable current calculated per JCS0168 with ambient temperature correction factors
