Taiyo Cabletec Co., Ltd. Hyper Soft (HPF) #300SB LF



Hyper Soft (HPF) #300SB LF is a flexible shielded cable for fixed wiring (rated 300V) with excellent oil, heat, and noise resistance. It features stranded annealed copper conductors, heat-resistant PVC insulation, and a matte black oil-/heat-resistant flexible PVC sheath. A braided tinned copper shield and drain wire provide noise protection. Rated at 300V / 75°C, it complies with the Electrical Appliance and Material Safety Act, JIS C 3102 & C 3005, and is CMJ-registered (F mark). RoHS compliant (10 substances), with “R15” printed.



Product Features

• Application: Shielded cable for fixed wiring in machine tools, power lines, and noise-sensitive circuits
  • Flexibility: Excellent workability with stranded structure and flexible PVC
  • Durability: High oil resistance to cutting and hydraulic oils
  • Environmental Resistance:
  – Heat Resistance: Up to 75°C
  – Oil Resistance: Uses oil-resistant PVC sheath
  – Flame Retardance: Complies with JIS C 3005 (4.26.2 b), CMJ certified (F mark)
  – Noise Resistance: Braided shield + drain wire reduce interference
  – Non-Migration: No plasticizer migration, safe for ABS/PS resins
  • Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking on sheath



Product Specifications

• Certifications: Electrical Appliance and Material Safety Act (≥0.75mm²), CMJ (F mark)
  • Standards Compliance:
  – JIS C 3102 (conductor), JIS C 3005 (flame retardance)
  – RoHS 2011/65/EU・2015/863 (10 substances)
  • Ratings:
  – Voltage: 300V
  – Temperature: 75°C
  • Flame Standard:
  – JIS C 3005 (4.26.2 b), CMJ vertical flame test certified (F mark)
  • Others:

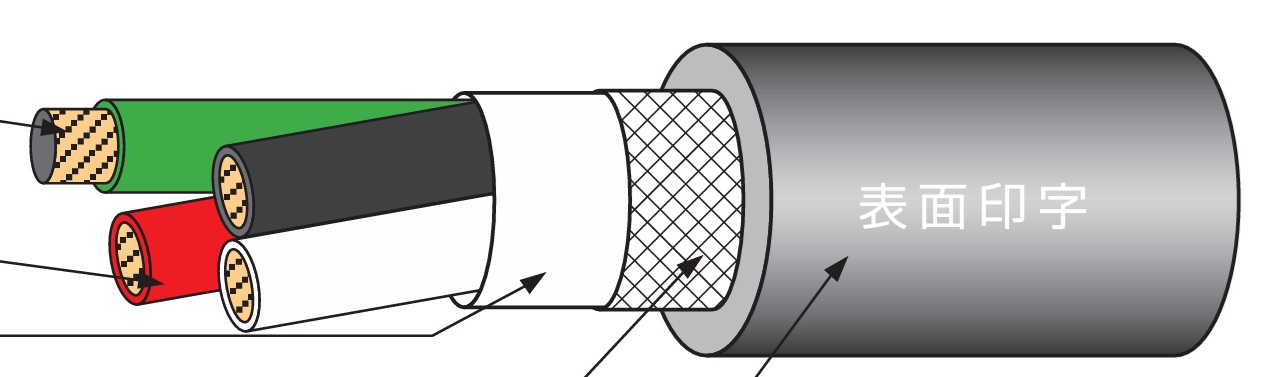

  – Structure: Stranded copper + heat-resistant PVC insulation + braided shield + matte black PVC sheath
  – Sizes: 0.3–2 mm², available from 2C to 30C
  – Surface Marking: “○○mm² Hyper Soft #300SB Oil/Heat Resistant TEIKOKU <PS>E LFV R15 -F-”
  – Standard Lengths: 100m / 500m (cutting available by size)
