Taiyo Cabletec Co., Ltd. UE/2517(N) [Y/G] LF
2026.03.11

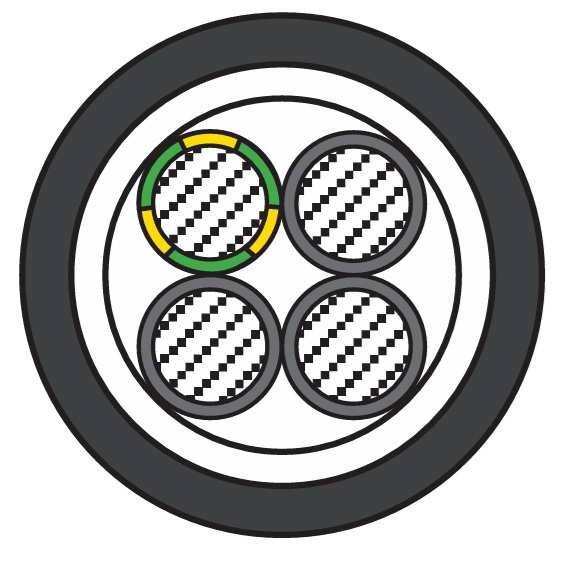

UE/2517(N) [Y/G] LF is a multi-core fixed wiring cable including a Y/G grounding wire, designed for use in electronic equipment for North America and the EU. It uses heat-resistant PVC insulation and a black PVC sheath with excellent oil, heat, and flexibility resistance. Rated at 300V/105°C, it complies with UL AWM STYLE 2517 (UL 758), CSA AWM ⅡA, and CE marking (TUV certified). It meets UL VW-1 and CUL FT1 flame standards and passes the 2000V / 5-minute dielectric strength test. RoHS compliant (10 substances), with “R15” marking on the sheath.
Product Features
- Application: Multi-core cable with Y/G ground wire for fixed wiring in North America/EU
• Flexibility: Flexible PVC enables easy handling and installation
• Durability: Stable performance for long-term fixed wiring inside equipment
• Environmental Resistance:
– Heat Resistance: Up to 105°C (UL/CUL)
– Oil Resistance: Industrial-grade oil-resistant PVC sheath
– Flame Retardance: Conforms to UL VW-1 / CUL FT1; passed vertical tray test
– Noise Resistance: Basic structure supports typical noise environments
– Low Migration: Minimal plasticizer migration prevents contamination of nearby devices
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: UL, CUL, TUV (CE marked)
• Standards Compliance:
– UL AWM STYLE 2517 (UL 758)
– CSA C22.2 No.210 (AWM ⅡA)
– EN50525-2-51 (equivalent to H05VV5-F), EN60228, EN60332-1-2
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 300V (UL/CUL), 300/500V (CE)
– Temperature: 105°C (UL/CUL), 70°C (CE)
• Flame Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
• Other: Includes Y/G grounding wire; passed 2000V / 5-min dielectric test; standard length: 100m
