Taiyo Cabletec Co., Ltd. UE/2517(N) LF
2026.03.11

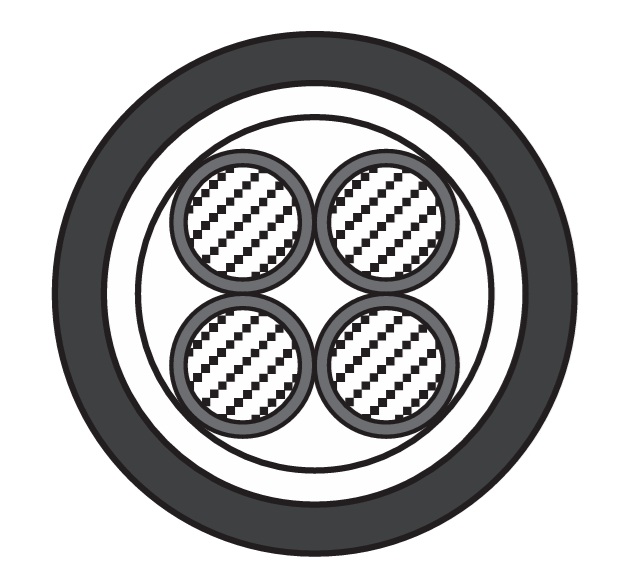

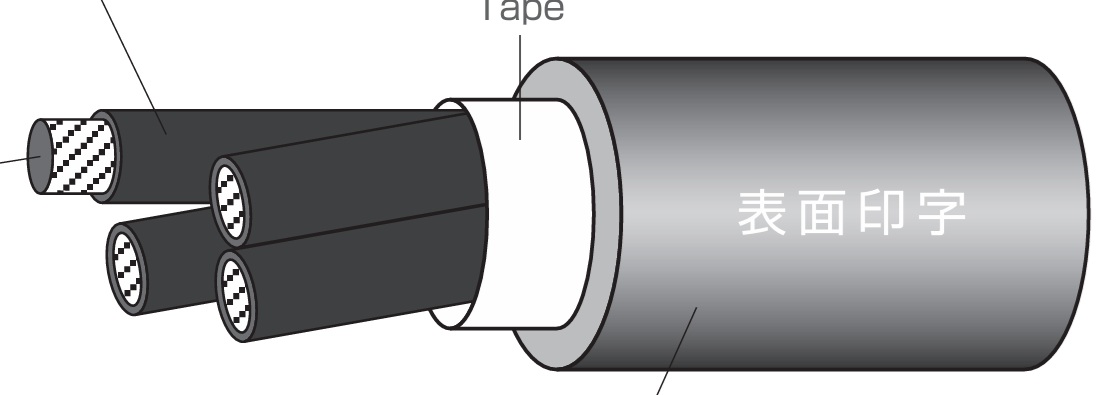

UE/2517(N) LF is a multi-core fixed wiring cable for electronic equipment, compliant with both North American and EU standards. It features stranded tinned soft copper conductors, heat-resistant PVC insulation, and a black oil-, heat-, and flexibility-resistant PVC sheath. Rated at 300V/105°C, it meets UL AWM STYLE 2517 and CSA AWM ⅡA standards and passes UL VW-1 and CUL FT1 flame tests. It also carries CE marking (TUV certified), conforms to EN50525-2-51 (H05VV5-F equivalent), and complies with the RoHS Directive (10 substances).
Product Features
- Application: Multi-core cable for fixed wiring inside electronic devices (North America/EU compliant)
• Flexibility: Easy handling and installation thanks to PVC sheath
• Durability: Excellent insulation resistance and dielectric strength for long-term fixed use
• Environmental Resistance:
– Heat Resistance: Up to 105°C
– Oil Resistance: High oil-resistant PVC sheath for industrial use
– Flame Retardance: UL VW-1 / CUL FT1 compliant
– Noise Resistance: Basic construction supports standard noise environments
– Low Migration: Minimal plasticizer migration reduces effects on surrounding devices
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 printed
Product Specifications
- Certifications: UL, CUL, TUV (CE marked)
• Standards Compliance:
– UL AWM STYLE 2517 (UL 758)
– CSA C22.2 No.210 (AWM ⅡA)
– EN50525-2-51 (H05VV5-F equivalent), EN60228, EN60332-1-2
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 300V (UL/CUL), 300/500V (CE)
– Temperature: 105°C (UL/CUL), 70°C (CE)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
• Surface Marking: R15 (RoHS compliant)
• Dielectric Strength: 2000V / 5 minutes test passed
