Taiyo Cabletec Co., Ltd. UE/2517-SB（N）［Y/G］LF
2026.03.11

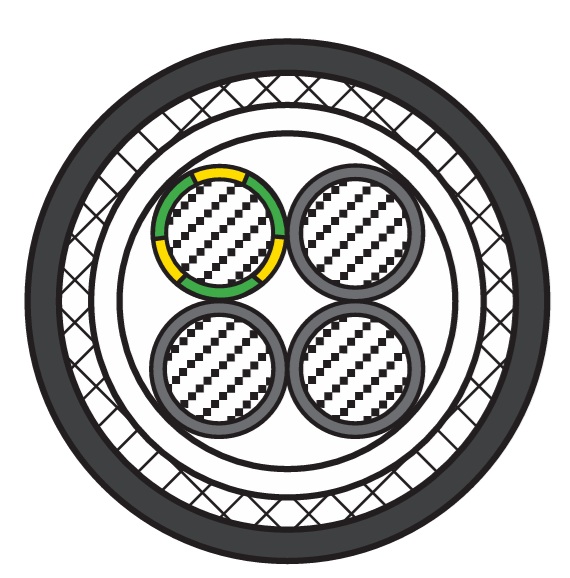

UE/2517-SB(N) [Y/G] LF is a shielded multi-core cable with a Y/G ground wire, designed for fixed wiring in North American and EU markets. It features heat-resistant PVC insulation, a black oil-, heat-, and flexibility-resistant PVC sheath, and stranded tinned soft copper conductors. Rated at 300V and 105°C, it complies with UL AWM STYLE 2517, CSA AWM ⅡA, and flame standards UL VW-1 and CUL FT1. CE marked (TUV certified), it meets EN50525-2-51 (equivalent to H05VV5-F) and RoHS Directive (10 substances). It has passed a dielectric strength test of 2000V for 5 minutes.
Product Features
- Application: Shielded multi-core cable for fixed wiring (North America/EU), includes Y/G ground wire
• Flexibility: Flexible PVC sheath ensures excellent workability
• Durability: High insulation resistance and dielectric strength for stable long-term performance
• Environmental Resistance:
– Heat Resistance: Up to 105°C
– Oil Resistance: Industrial-grade oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Noise Resistance: Braided shielding reduces electromagnetic interference
– Low Migration: Suppresses plasticizer migration to prevent device degradation
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: UL, CUL, TUV (CE marked)
• Standards Compliance:
– UL AWM STYLE 2517 (UL 758)
– CSA C22.2 No.210 (AWM ⅡA)
– EN50525-2-51 (H05VV5-F equivalent), EN60228, EN60332-1-2
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 300V (UL/CUL), 300/500V (CE)
– Temperature: 105°C (UL/CUL), 70°C (CE)
• Flame Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
• Other: Passed 2000V / 5 min dielectric test; standard length 100m; includes Y/G wire
