Taiyo Cabletec Co., Ltd. UE/2517-SB(N) LF

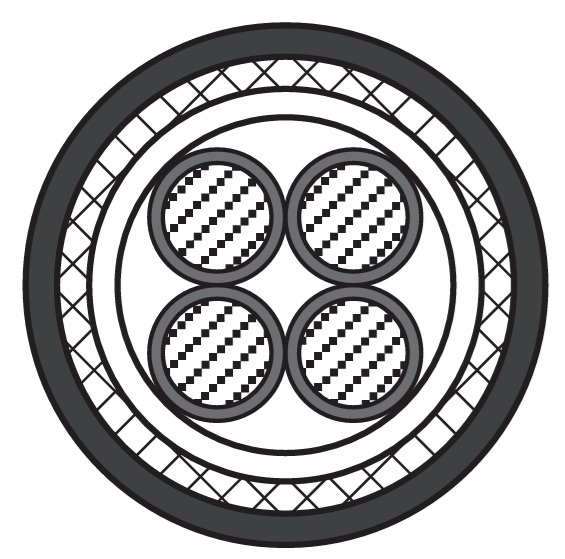

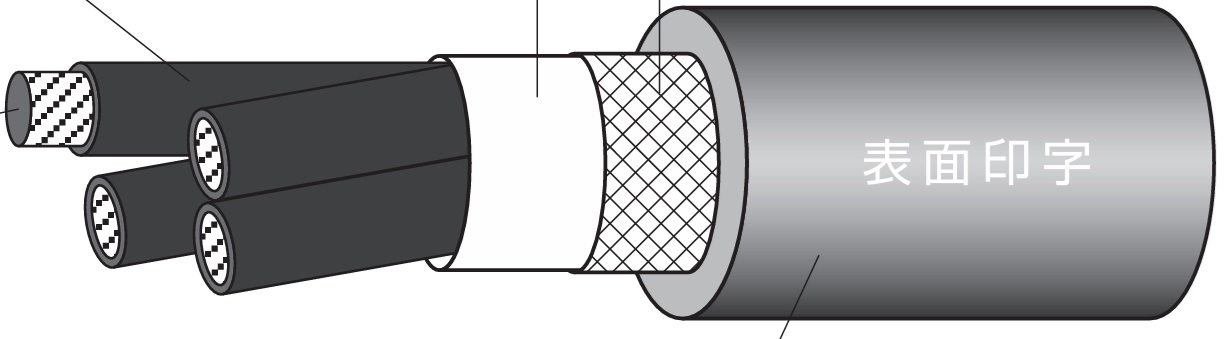

UE/2517-SB(N) LF is a shielded multi-core cable for fixed wiring in electronic equipment, compliant with North American and EU standards. It uses stranded tinned soft copper conductors, heat-resistant PVC insulation, and a black oil-, heat-, and flexibility-resistant PVC sheath. With a tinned copper braid shielding structure, it offers basic noise protection. Rated at 300V/105°C, it meets UL AWM STYLE 2517 and CSA AWM ⅡA standards, is CE marked (TUV certified), and conforms to EN50525-2-51. It also meets UL VW-1 and CUL FT1 flame standards and passes the 2000V/5-minute dielectric strength test. RoHS compliant (10 substances), with “R15” marking.
Product Features
- Application: Shielded multi-core cable for fixed wiring (North America/EU compliant)
• Flexibility: Excellent handling enabled by flexible PVC
• Durability: Rugged structure for long-term fixed wiring use
• Environmental Resistance:
– Heat Resistance: Up to 105°C
– Oil Resistance: Industrial-grade oil-resistant PVC sheath
– Flame Retardance: Conforms to UL VW-1 / CUL FT1
– Noise Resistance: Basic shielding with tinned copper braid
– Low Migration: Suppresses plasticizer migration, minimizing impact on surrounding equipment
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: UL, CUL, TUV (CE marked)
• Standards Compliance:
– UL AWM STYLE 2517 (UL 758)
– CSA C22.2 No.210 (AWM ⅡA)
– EN50525-2-51 (H05VV5-F equivalent), EN60228, EN60332-1-2
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 300V (UL/CUL), 300/500V (CE)
– Temperature: 105°C (UL/CUL), 70°C (CE)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
• Other: Passed 2000V / 5-minute dielectric strength test; standard length 100m (cutting available)
