Taiyo Cabletec Co., Ltd. UE/THHW LF

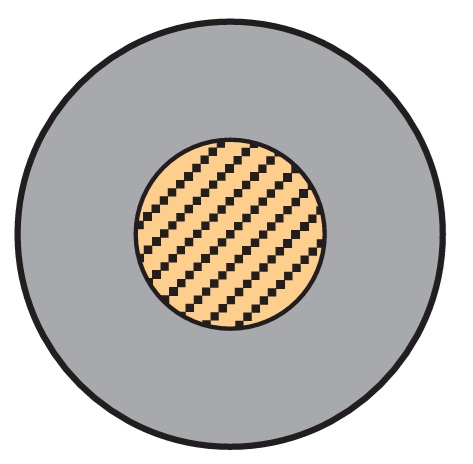

UE/THHW LF is a 600V-rated, 90°C single-core fixed wiring cable designed for the North American and EU markets. It uses heat-resistant PVC insulation and complies with UL THHW, MTW, and CSA TW75. It meets flame retardant standards including UL VW-1, CUL FT1, and the UL vertical tray flame test, and conforms to NFPA 70 and 79. CE marked (TÜV certified) and compliant with EN50525-2-31 (equivalent to H07V-K), it uses a green base with yellow stripe for Y/G identification. The cable also conforms to the RoHS Directive (10 substances).
Product Features
- Application: Single-core cable for general wiring, trays, and raceways (North America / EU compliant)
• Flexibility: Easy routing with Class K conductor and flexible PVC
• Durability: Passes UL vertical tray test; suitable for tray and raceway wiring (1/0 AWG and above)
• Environmental Resistance:
– Heat Resistance: 90°C (dry), 75°C (wet)
– Oil Resistance: Basic oil resistance via heat-resistant PVC
– Flame Retardance: UL VW-1, CUL FT1, vertical tray compliant
– Noise Resistance: Basic structural shielding properties
– Low Migration: RoHS-compliant PVC suppresses plasticizer migration
• Safety: RoHS compliant (2011/65/EU・2015/863); marked with R15 on surface
Product Specifications
• Certifications: UL, CUL, TÜV (CE certified)
• Standards Compliance:
– UL 83 (THHW), UL 1063 (MTW)
– CSA C22.2 No.75 (TW75)
– EN50525-2-31 (H07V-K equivalent), EN60228, EN60332-1-2
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 600V (UL/CSA), 450/750V (CE)
– Temperature: 90°C (dry), 75°C (wet), 70°C (CE)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– UL vertical tray flame test passed
