Taiyo Cabletec Co., Ltd. SUNLIGHT SX-E LF
2026.03.20

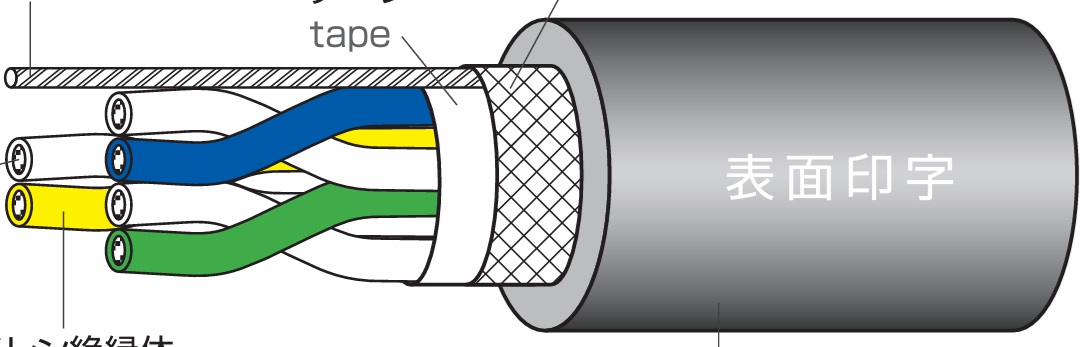

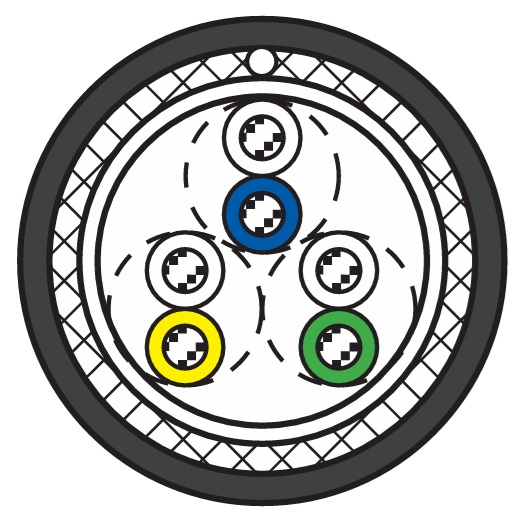

SUNLIGHT SX-E LF is a shielded twisted-pair instrumentation cable designed for RS485, RS422, RS232C signal transmission, FA control systems, and computer wiring. It features stranded tinned copper conductors, polyethylene insulation with excellent electrical properties, and a black PVC sheath that is resistant to oil, heat, flame, chemicals, and flexibility. The sheath is non-migratory to ABS and PS resins. Braided shield with drain wire ensures excellent noise protection. Compliant with UL VW-1 flame standard and RoHS (10 substances).
Product Features
- Application: Signal/control wiring for FA/OA equipment; RS485, RS422, RS232C compatible
• Flexibility: Flexible PVC sheath ensures easy handling
• Durability: Non-migratory to ABS/PS resins; suitable for long-term fixed wiring
• Environmental Resistance:
– Heat Resistance: Rated up to 75°C
– Oil Resistance: Oil-resistant PVC sheath
– Flame Retardance: UL VW-1 compliant
– Noise Resistance: Braided shield + drain wire provides high shielding performance
– Other: Cold, chemical, abrasion, and water resistant
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking
Product Specifications
- Certifications: UL (VW-1 equivalent), RoHS
• Standards Compliance:
– UL VW-1 (flame retardant)
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: Less than 100V
– Temperature: 75°C
• Flame Standard: UL VW-1
• Others:
– Includes braided shield + drain wire
– Pair identification: e.g., white + blue
– Standard length: 100m (long lengths and cut lengths available)
