Taiyo Cabletec Co., Ltd. TBF/2501 600V LF

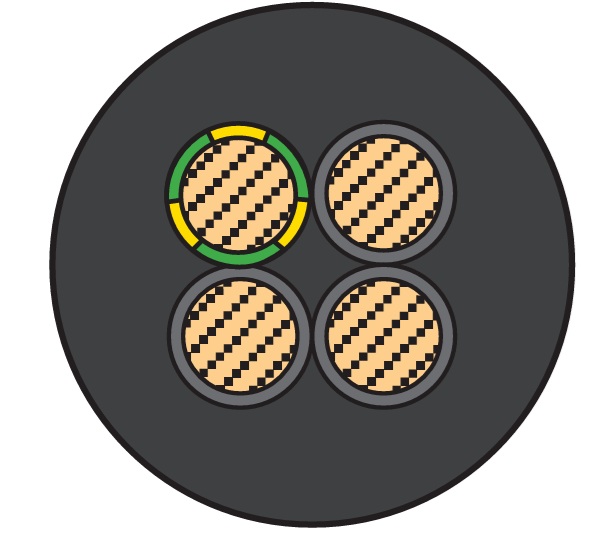

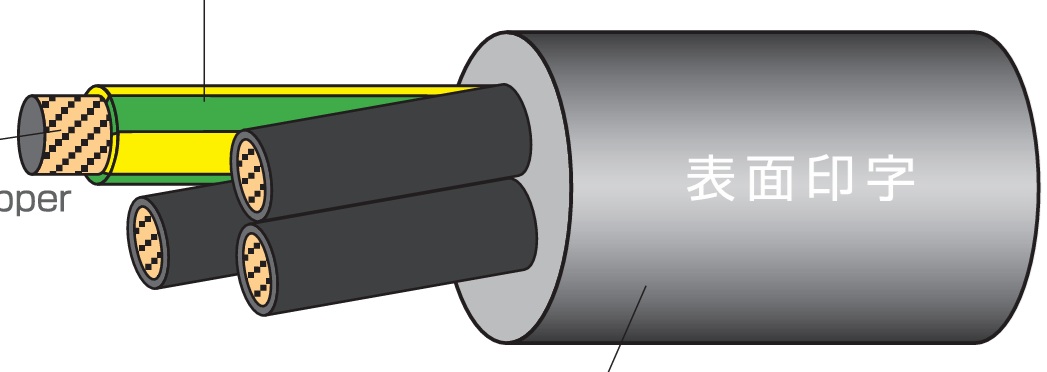

TBF/2501 600V LF is a high-voltage, oil-resistant, flexible robot cable designed for power wiring in electrical equipment. It uses stranded soft copper wires for the conductor and oil- and heat-resistant PVC for both insulation and sheath. Rated at 600V and 105°C, it complies with UL STYLE 2501, CUL, and CSA standards, and is RoHS compliant. The cable has passed over 5 million cycles (actual over 10 million) in cable carrier tests and offers excellent resistance to lubricating, hydraulic, and cutting oils. It is a reliable power cable ideal for power circuits requiring medium to high current.
Product Features
- Application: Flexible robot cable for power systems and power circuits
• Flexibility: Excellent flexibility with soft copper strands and flexible PVC
• Durability: Passed over 5 million cycles (actual over 10 million) in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: High resistance to lubricants, hydraulic oil, cutting oil (Grade A–B)
– Flame Retardance: Complies with UL VW-1 / CUL FT1
• Other: Passed proprietary 2000V/5-minute withstand voltage test; custom sizes available
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 2501 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 600V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
