Taiyo Cabletec Co., Ltd. TBF/2517 300V LF

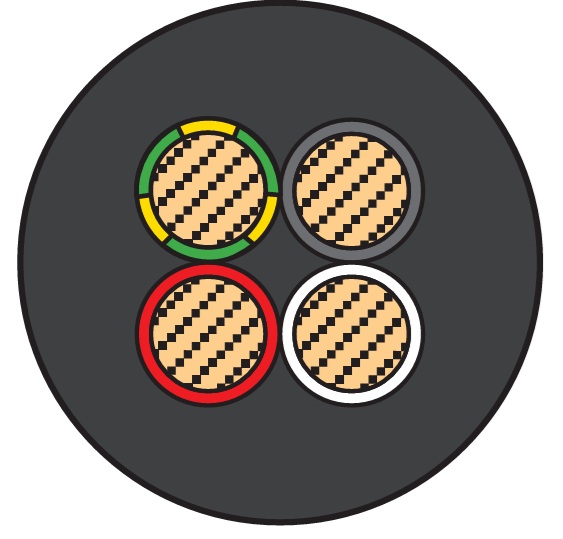

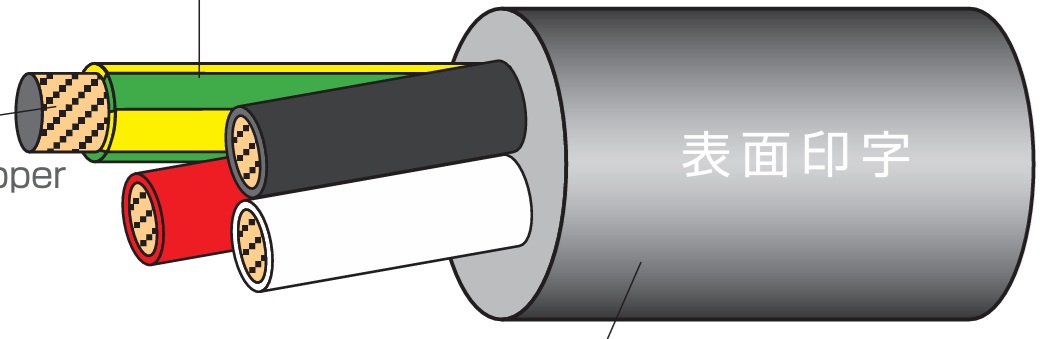

TBF/2517 300V LF is a highly oil-resistant, heat-resistant, and flexible robot cable suitable for medium- to low-speed movable parts in machine tools and electronic equipment. It uses stranded soft copper wires as conductors, heat-resistant PVC as the insulator, and highly oil- and heat-resistant PVC as the sheath. Rated at 300V and 105°C, it conforms to UL STYLE 2517 and CUL/CSA standards. The cable has demonstrated durability over 5 million cycles (actual over 10 million) in cable carrier tests and complies with the RoHS Directive. Sizes from 19 to 15 AWG also comply with Japan’s Electrical Appliance and Material Safety Act (PSE), ensuring reliability in vibration environments.
Product Features
- Application: Ideal for wiring movable parts of machine tools and electronic equipment at medium/low speed
• Flexibility: Highly flexible with fine stranded conductors and soft PVC
• Durability: Over 5 million cycles (actual over 10 million) in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Industrial-grade with high oil-resistant PVC sheath
– Flame Retardance: Conforms to UL VW-1 / CUL FT1
• Other: Passed 2000V/5-minute withstand voltage test, PSE compliant (for 19–15 AWG)
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 2517 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– Complies with Japan Electrical Appliance and Material Safety Act (PSE) (for applicable sizes)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 300V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
