Taiyo Cabletec Co., Ltd. TC / TC-ER LF

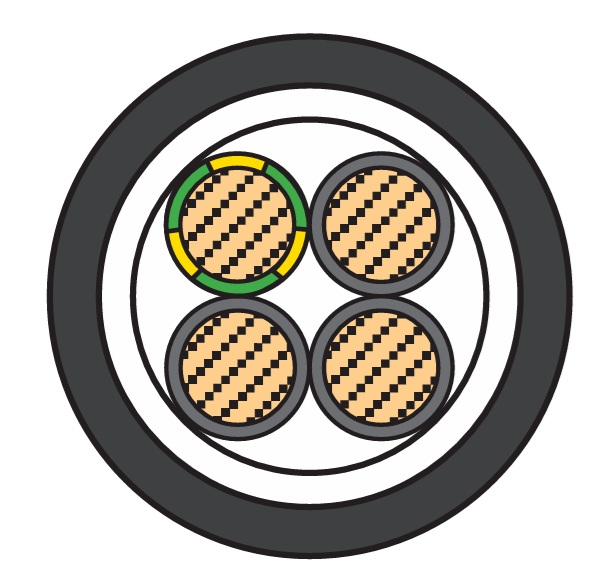

TC / TC-ER LF is a 600V-rated fixed wiring multi-core cable with heat-resistant PVC insulation, suitable for tray and raceway wiring. It uses heat-resistant PVC for insulation and black PVC with oil, heat, and flexibility resistance for the sheath. Certified under UL TC (UL 1277) and TC-ER, it conforms to NFPA 70 and 79, and passes the UL vertical tray flame test. Configurations with 3 or more cores include a Y/G ground wire. It is compliant with the RoHS Directive (10 substances). The 2-core type is not covered by TC-ER. Standard length is 100m, with cut lengths available for some types.
Product Features
- Application: 600V fixed wiring cable for tray and raceway systems
• Flexibility: Flexible PVC sheath allows easy handling and installation
• Durability: Stable long-term performance; compliant with UL TC / TC-ER and NFPA 70 / 79
• Environmental Resistance:
– Heat Resistance: 90°C (dry), 75°C (wet)
– Oil Resistance: High oil-resistant PVC suitable for industrial use
– Flame Retardance: Meets UL VW-1 equivalent and vertical tray test (UL 1277)
– Noise Resistance: Basic structure provides light noise suppression
– Low Migration: Plasticizer migration minimized for RoHS compliance
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: UL TC, UL TC-ER (3 cores or more), UL MTW, CSA
• Standards Compliance:
– UL 1277 (TC), UL vertical tray test passed
– NFPA 70 / 79
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 600V
– Temperature: 90°C (DRY), 75°C (WET)
• Flame Standards:
– UL VW-1 equivalent, UL vertical tray test passed
• Others: Includes Y/G ground wire (3C or more); surface marking includes R15
