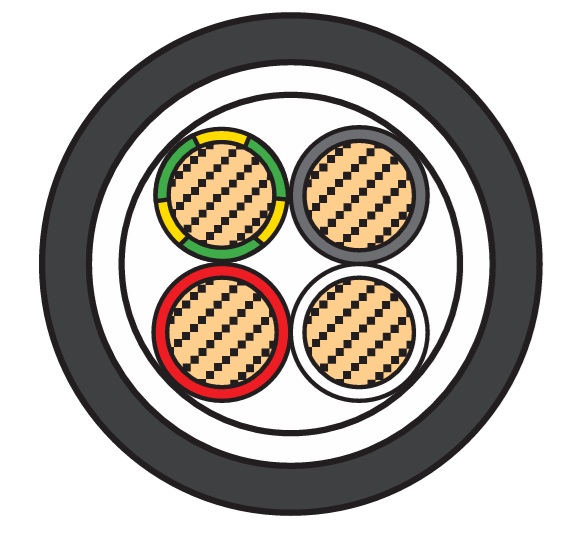

Taiyo Cabletec Co., Ltd. TTC-Ⅱ/2501 LF

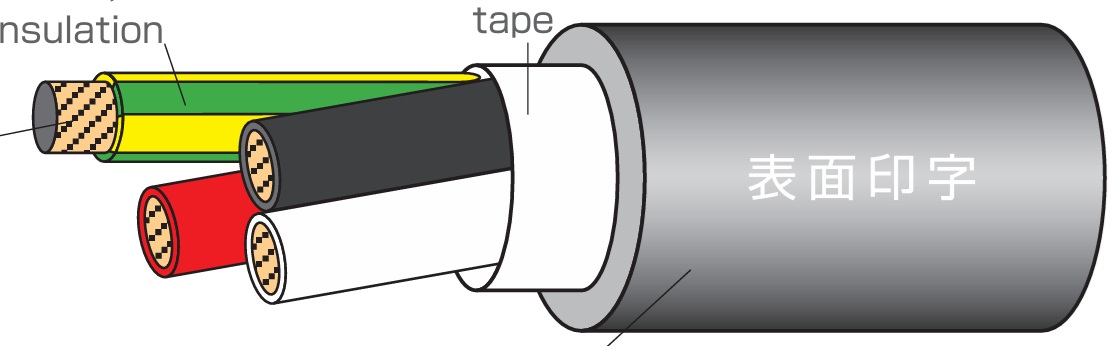

TTC-Ⅱ/2501 LF is a highly durable, highly flexible 600V-compatible robot cable ideal for high-speed movable parts in robots and electronic equipment. It uses specially ultra-fine copper wires for the conductor, high-slick and heat-resistant PVC for the insulation, and highly oil- and heat-resistant PVC for the sheath. It has demonstrated more than 10 million cycles of durability in cable carrier tests. Rated at 600V and 105°C, it complies with UL STYLE 2501, CUL, and CSA standards. It supports constructions with Y/G ground wire and conforms to the RoHS Directive. This is a multi-core, highly reliable cable with well-balanced flexibility, heat resistance, oil resistance, and flame retardancy.
Product Features
- Application: 600V cable for high-speed movable parts in robots and electronic equipment
• Flexibility: Excellent flexibility with ultra-fine conductors and flexible PVC
• Durability: Proven over 10 million cycles in cable carrier tests (linear and U-shaped bending)
• Environmental Resistance:
– Heat Resistance: Supports up to 105°C
– Oil Resistance: Uses highly oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
• Other: Supports Y/G ground wire structure (+1C), includes current reduction factor
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) covering 10 substances
Product Specifications
- Certifications: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 2501 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulations)
• Ratings:
– Voltage: 600V
– Temperature: 105°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
