Taiyo Cabletec Co., Ltd. UE/2501E(N)/TC [Y/G] LG LF

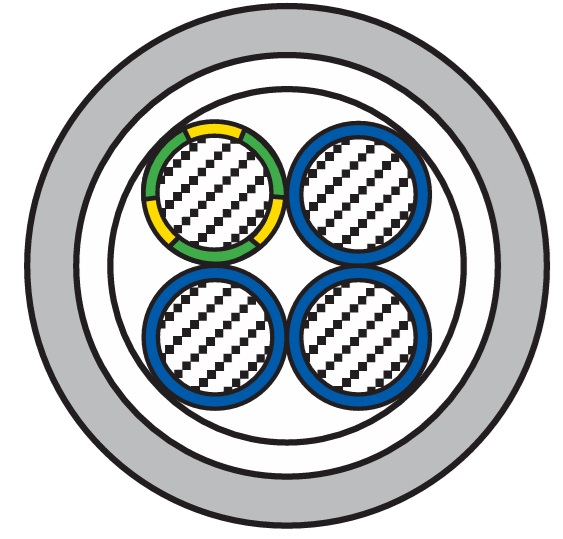

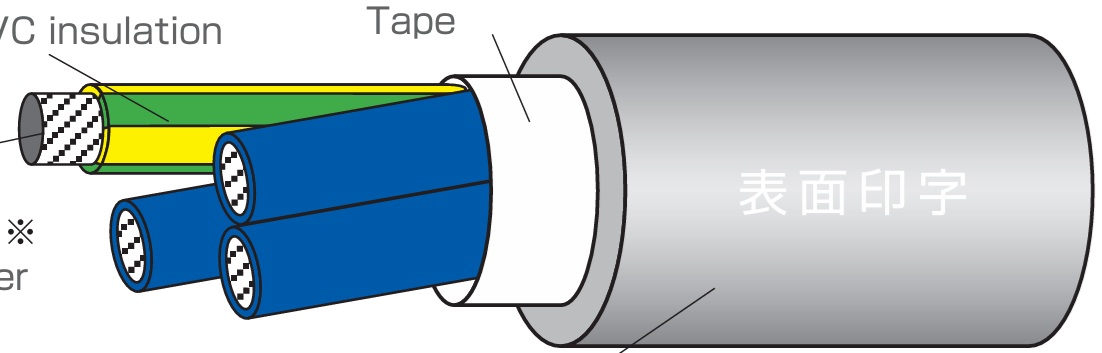

UE/2501E(N)/TC [Y/G] LG LF is a 600V-rated multi-core fixed wiring cable for the North American and EU markets, featuring a structure that includes a Y/G ground wire. It uses heat-resistant PVC for insulation and a light gray PVC sheath with oil, heat, and flexibility resistance. Shielded versions are also available for enhanced noise protection. It is certified under UL TC, MTW, AWM STYLE 2501, CSA, and TUV (CE), and complies with NFPA 70/79. It meets flame retardant standards UL VW-1, CUL FT1, and UL vertical tray test, and is RoHS compliant (10 substances). Standard length is 100m, and it passes a 2000V / 5-minute dielectric strength test.
Product Features
- Application: Multi-core fixed wiring cable for North America/EU, with Y/G ground wire and light gray sheath
• Flexibility: Light gray PVC sheath offers excellent workability
• Durability: 600V, 105°C rated for high reliability
• Environmental Resistance:
– Heat Resistance: 105°C (AWM), 90°C (DRY), 75°C (WET)
– Oil Resistance: High oil-resistant PVC suitable for industrial use
– Flame Retardance: UL VW-1 / CUL FT1, UL vertical tray test passed
– Noise Resistance: Shielded version available if needed
– Low Migration: Plasticizer migration suppressed to protect surrounding equipment
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking
Product Specifications
- Certifications: UL (TC, MTW, AWM 2501), CUL, TUV (CE certified)
• Standards Compliance:
– UL 1277 (TC), UL 1063 (MTW), UL 758 (AWM)
– CSA C22.2 No.210 (AWM ⅡA/B)
– EN50525-2-51 (H05VV5-F equivalent), EN60228, EN60332-1-2
– Electrical Appliance and Material Safety Act (18–10 AWG)
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 600V (UL/CUL), 300/500V (CE)
– Temperature: 105°C (AWM), 90°C (DRY), 75°C (WET), 70°C (CE)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– UL vertical tray flame test passed
• Others: Includes 14AWG Y/G ground wire; standard length 100m (cutting available for some sizes)
