Taiyo Cabletec Co., Ltd. UE/2501-SB(N)/TC LF
2026.03.20

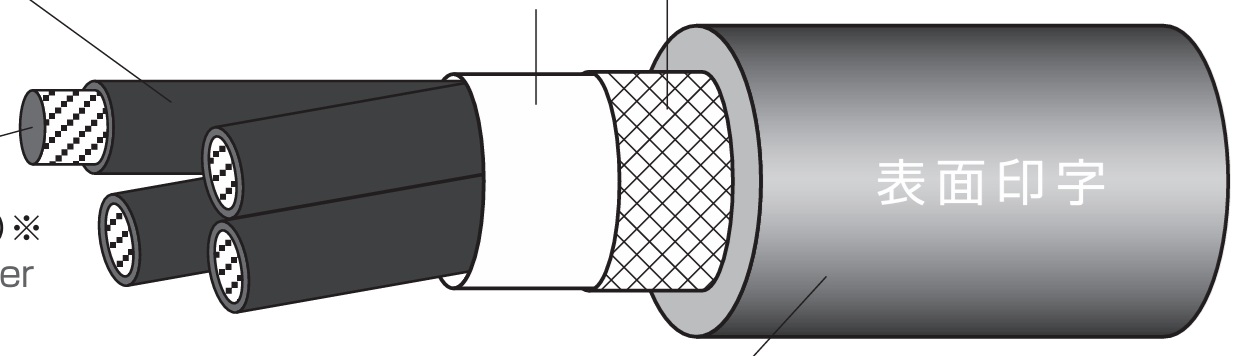

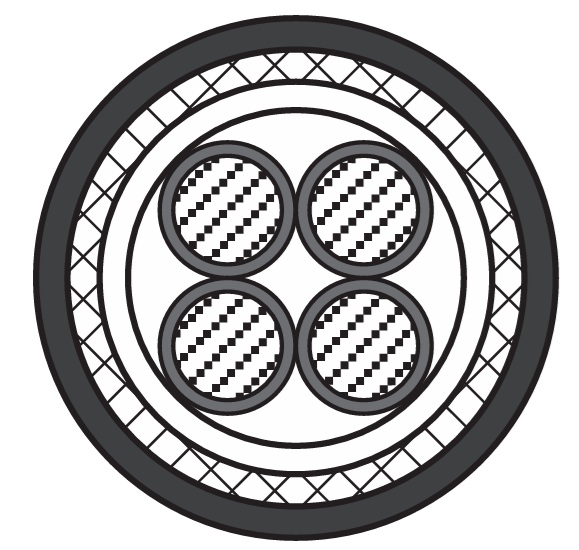

UE/2501-SB(N)/TC LF is a 600V-rated shielded multi-core cable for fixed wiring in tray and raceway systems and electronic equipment, compliant with North American and EU standards. It uses stranded bare or tinned soft copper conductors, heat-resistant PVC insulation, and a black PVC sheath with excellent oil, heat, and flexibility resistance. A braided tinned copper shield enhances noise resistance. Certified under UL TC, MTW, AWM STYLE 2501, CSA, and CE (TUV), and RoHS compliant (10 substances). It also meets UL VW-1, CUL FT1, and UL vertical tray flame standards.
Product Features
- Application: Shielded multi-core cable for fixed wiring in cable trays, raceways, and control panels
• Flexibility: Flexible PVC provides easy handling and excellent workability
• Durability: High-voltage 600V, 105°C structure; passes 2000V/5-minute dielectric test
• Environmental Resistance:
– Heat Resistance: Up to 105°C (AWM), 90°C (DRY), 75°C (WET)
– Oil Resistance: Industrial-grade oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1, UL vertical tray test passed
– Noise Resistance: Braided shield structure enhances noise immunity
– Low Migration: Suppresses plasticizer migration to reduce impact on surrounding equipment
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking on sheath
Product Specifications
- Certifications: UL (TC, MTW, AWM 2501), CUL, TUV (CE certified)
• Standards Compliance:
– UL 1277 (TC), UL 1063 (MTW), UL 758 (AWM)
– CSA C22.2 No.210 (AWM ⅡA/B)
– EN50525-2-51 (H05VV5-F equivalent), EN60228, EN60332-1-2
– Electrical Appliance and Material Safety Act (for 18–10 AWG)
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 600V (UL/CUL), 300/500V (CE)
– Temperature: 105°C (AWM), 90°C (DRY), 75°C (WET), 70°C (CE)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– UL vertical tray flame test passed
• Others: Standard length 100m; AWG18–6 supported; structure and allowable current defined
