Taiyo Cabletec Co., Ltd. STOOW（A）/TC-ER LF

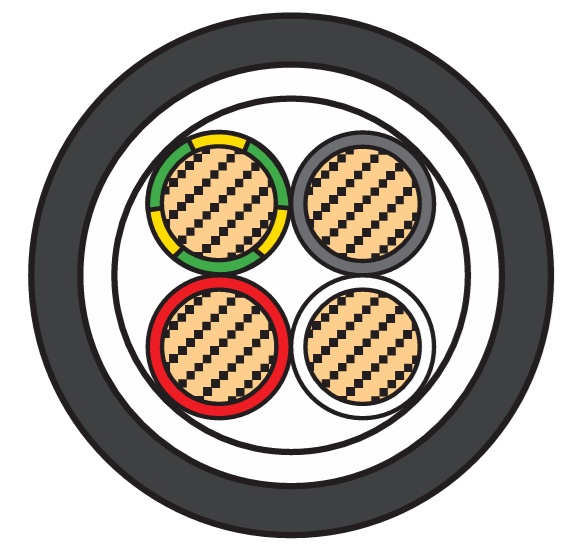

STOOW(A)/TC-ER LF is a 600V-rated, 105°C fixed wiring multi-core cable designed for the North American market. It features stranded soft copper conductors, oil- and heat-resistant PVC insulation, and a black sheath made of flexible, heat- and oil-resistant PVC. It is listed under UL STOOW (UL 62) and UL TC (UL 1277), compliant with NFPA 70 and 79, and passes the UL vertical tray flame test. For 3 cores or more, it includes a same-size Y/G ground wire. Compliant with the RoHS Directive (10 substances), with “R15” printed on the surface. Note: 2C types are not covered under TC-ER.
Product Features
- Application: 600V heat-resistant cable for tray wiring, raceways, and fixed power wiring
• Flexibility: Flexible PVC sheath allows for excellent routing and installation
• Durability: Conforms to multiple standards (UL TC, STOOW, MTW), ensuring long-term reliability
• Environmental Resistance:
– Heat Resistance: 105°C (STOOW), 90°C (dry), 75°C (wet)
– Oil Resistance: Oil-resistant PVC for both insulation and sheath
– Flame Retardance: UL VW-1 / CUL FT1 / UL vertical tray test passed
– Noise Resistance: Basic shielding performance from structural design
– Low Migration: Designed to suppress plasticizer migration; RoHS compliant (R15 marking)
• Safety: RoHS Directive compliant (2011/65/EU・2015/863, 10 substances)
Product Specifications
- Certifications: UL STOOW (UL 62), TC (UL 1277), MTW (UL 1063), CUL, CSA, PSE
• Standards Compliance:
– UL 62 (STOOW), UL 1277 (TC), UL 1063 (MTW)
– CSA C22.2 No.49, NFPA 70 / 79
– JIS C 3102 (Electrical Appliance and Material Safety Act)
– RoHS 2011/65/EU・2015/863
• Ratings:
– Voltage: 600V
– Temperature: 105°C (STOOW), 90°C (dry), 75°C (wet)
• Flame Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– UL vertical tray test passed
• Others:
– 3C and 4C types include Y/G ground wire
– Example surface marking: “TC-ER 90°C DRY 75°C WET / STOOW 105°C 600V VW-1”
– Standard length: 100m (cut lengths available for some types)
