Taiyo Cabletec Co., Ltd. SUNLIGHT 3DX LF
2026.03.28

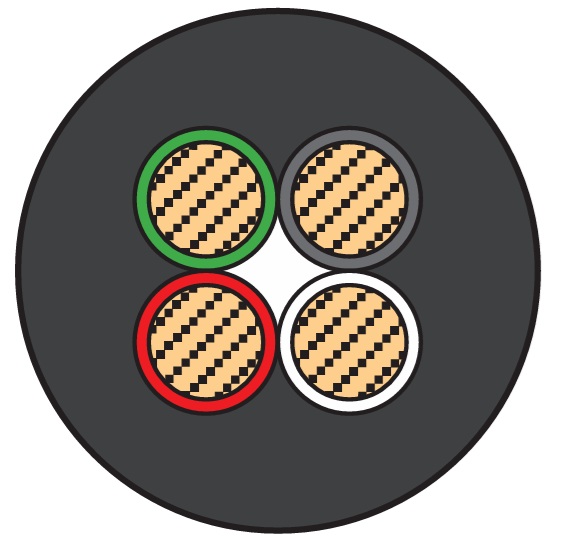

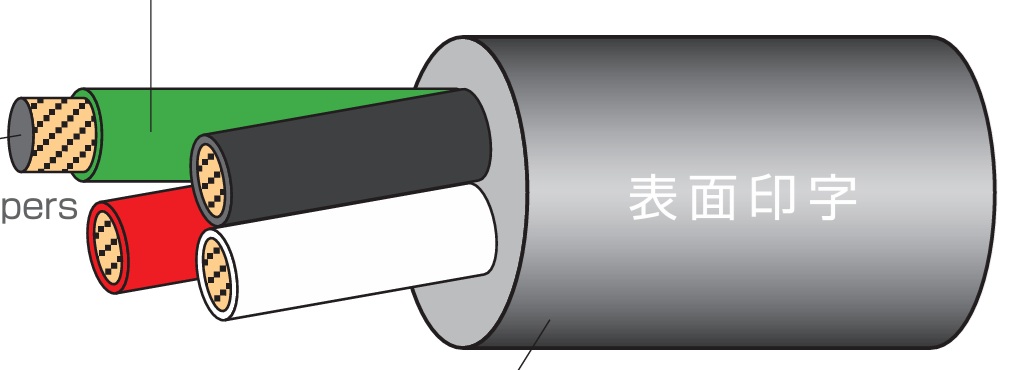

SUNLIGHT 3DX LF is an oil-resistant, flexible vinyl cabtire cable designed for fixed wiring in electronic devices and control panels. It uses stranded soft copper conductors, vinyl insulation, and a black PVC sheath that is oil-, heat-, flame-resistant, and flexible. It offers excellent non-migratory properties and does not affect ABS or PS resins. Rated at 300V / 60°C, it complies with the UL VW-1 flame test and the RoHS Directive (10 substances), marked with “R15”. Cables with 5 cores or more use number-based identification; 8 cores or more have tape wrapping.
Product Features
- Application: Fixed cable for internal wiring of control panels, machine tools, and robots
• Flexibility: Excellent workability with flexible PVC
• Durability: Sheath provides resistance to abrasion, cold, water, and chemicals
• Environmental Resistance:
– Heat Resistance: Up to 60°C
– Oil Resistance: Excellent resistance to hydraulic, cutting, and insulating oils (rated A–B)
– Flame Retardance: UL VW-1 compliant
– Non-Migration: No plasticizer migration to ABS/PS resins
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking
Product Specifications
- Certifications: – (Domestic standards compliant)
• Standards Compliance:
– Electrical Appliance and Material Safety Act: JIS C 3102 (≥0.75mm²), JIS C 3005 (flame resistance)
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 300V
– Temperature: 60°C
• Flame Standard: UL VW-1 compliant
• Others:
– “R15” printed on sheath
– Sizes: 0.3 to 2mm²; up to 50 cores available
– Standard length: 100m (cutting available for 5C and above)
