Taiyo Cabletec Co., Ltd. SUNLIGHT 3SX LF
2026.03.28

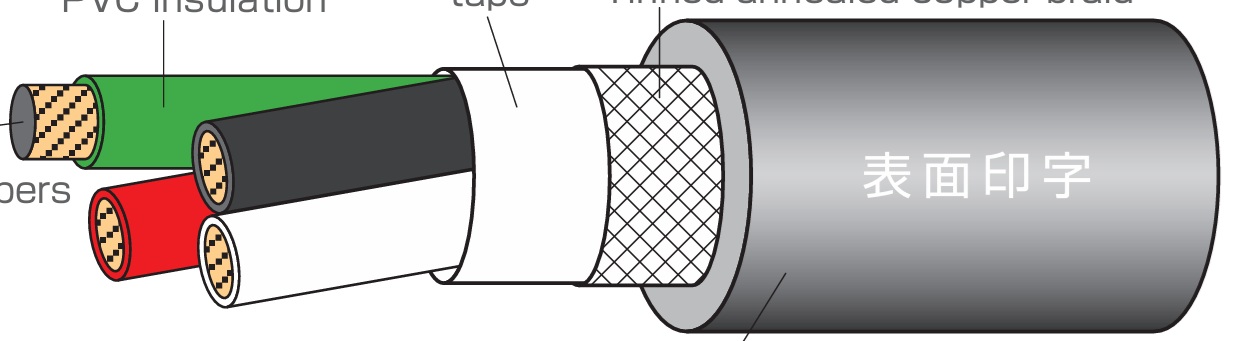

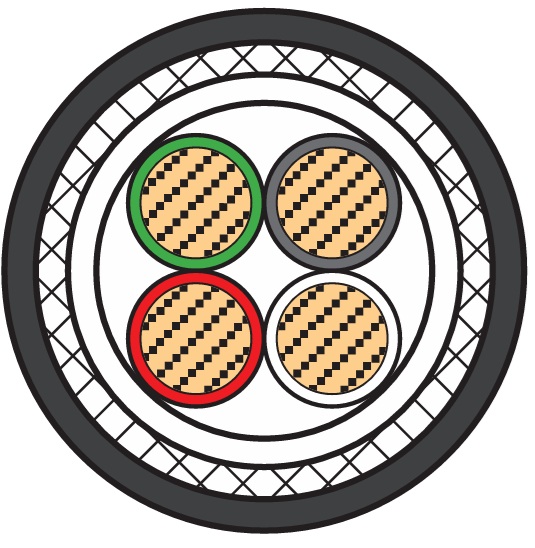

SUNLIGHT 3SX LF is a shielded multi-core cable for fixed wiring in electronic devices, control panels, and robot power circuits. It uses stranded soft copper conductors, PVC insulation, and a black PVC sheath that is oil-, heat-, flame-resistant, flexible, and non-migratory. Its braided shield structure and drain wire provide basic noise protection. Rated at 300V / 60°C and compliant with UL VW-1 flame standard and the RoHS Directive (10 substances), with “R15” marking. Complies with the Electrical Appliance and Material Safety Act (0.75–2mm²).
Product Features
- Application: Shielded multi-core cable for fixed wiring in electronics, control panels, and robot power circuits
• Flexibility: Flexible PVC sheath offers excellent workability
• Durability: Non-migratory design prevents contamination of ABS/PS resins for long-term stability
• Environmental Resistance:
– Heat Resistance: Up to 60°C
– Oil Resistance: A–B grade resistance to lubricating, hydraulic, cutting, and insulating oils
– Flame Retardance: UL VW-1 compliant
– Noise Resistance: Braided tinned copper shield + drain wire ensures shielding performance
– Non-Migration: No plasticizer migration (safe for ABS/PS resins)
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: – (domestic use), Electrical Appliance and Material Safety Act (0.75–2mm²)
• Standards Compliance:
– JIS C 3102 (Electrical Safety Act)
– Flame: JIS C 3005 4.26.2(b), UL VW-1 equivalent
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 300V
– Temperature: 60°C
• Flame Standard: UL VW-1 equivalent
• Others:
– Available in 2C–30C, 0.3–2mm² sizes
– Number-coded for 5C and above; structure and current rating charts available
– Standard length: 100m (long lengths and cutting available from 6C+)
