Taiyo Cabletec Co., Ltd. SUNLIGHT 6DX LF

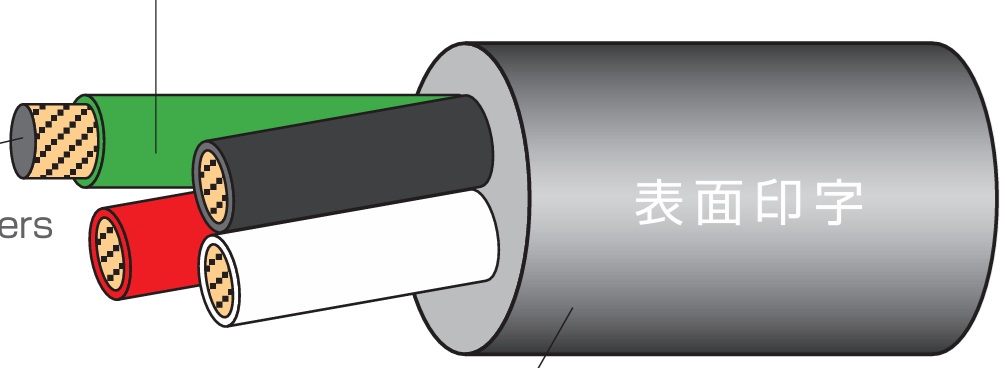

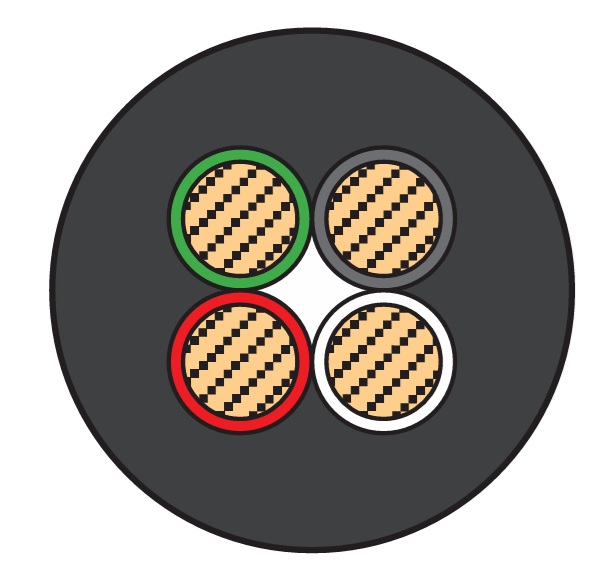

SUNLIGHT 6DX LF is a 600V-rated cabtire cable designed for fixed wiring in electronic devices and robot power systems. It features stranded soft copper conductors, PVC insulation, and a sheath made of oil-, heat-, flame-resistant, and flexible PVC with non-migratory properties toward ABS and PS resins. The sheath also offers resistance to chemicals, water, abrasion, weather, and cold. It complies with the UL VW-1 flame standard, the Electrical Appliance and Material Safety Act, and the RoHS Directive (10 substances), with R15 marking. Ideal for machine tools and construction equipment in harsh environments.
Product Features
- Application: Fixed wiring for machine tools, construction equipment, and robot power circuits
• Flexibility: Easy handling thanks to flexible PVC
• Durability: Usable with a bending radius of ≥6× outer diameter; available in long lengths
• Environmental Resistance:
– Heat Resistance: Up to 60°C
– Oil Resistance: A–B grade against lubricants, hydraulic, cutting, and insulating oils
– Flame Retardance: Complies with UL VW-1
– Non-Migration: No plasticizer migration to ABS/PS resins
– Other: Water, abrasion, weather, cold, and chemical resistant
• Safety: RoHS compliant (2011/65/EU・2015/863), with R15 marking
Product Specifications
- Certifications: Compliant with Electrical Appliance and Material Safety Act (JIS C 3102)
• Standards Compliance:
– Flame: JIS C 3005 4.26.2(b), UL VW-1 equivalent
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 600V
– Temperature: 60°C
• Flame Standard: UL VW-1 equivalent
• Others:
– Sizes: 0.75–38 mm²; up to 30 cores
– Marking: “SUNLIGHT 6DX (Oil-resistant Flame-retardant Flexible) 600V ○○mm² TAIYO CABLETEC LF R15”
– Standard Length: 100m (cutting and long length available for ≥5C and ≥3.5mm²)
