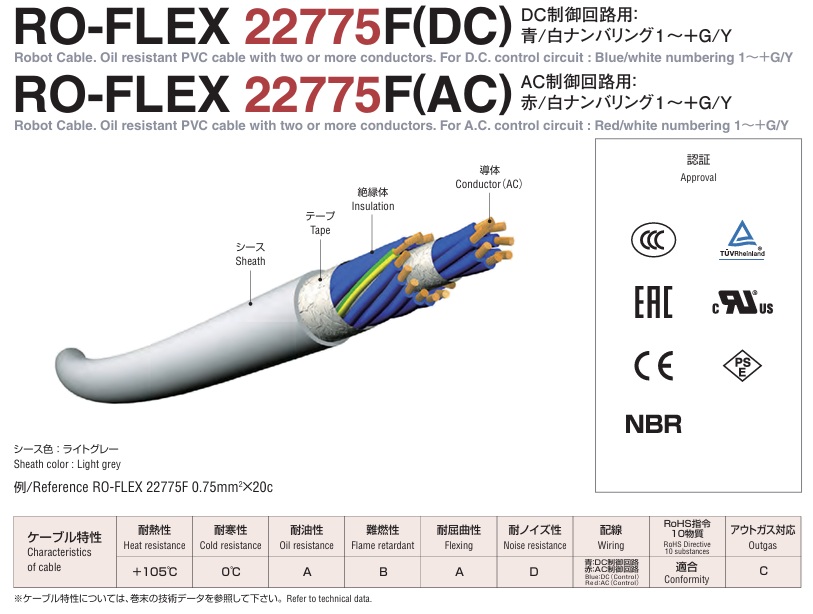

Nichigoh Communication Electric Wire O-FLEX 22775F(DC), RO-FLEX 22775F(AC) Cable
RO-FLEX 22775F(DC), (AC) manufactured by Nichigo Communication Electric Wire are worldwide standard power cables for moving parts which features excellent oil resistance, bending resistance, and durability.
They are mainly used for the moving parts of the wiring inside equipment such as machine tools and industrial machinery, and power supply lines.
The unit of length for sale is 153 MT, and the cable sheath is light gray.
They are available in sizes ranging from AWG21/0.5sq to AWG16/1.5sq, and there are 12 types of cores ranging from 2 cores to 20 cores.
They comply with the RoHS Directive for the restriction of the use of 10 substances.
RO-FLEX 22775F (DC) is used for DC control circuits. Core wires are blue/white and numbered from 1 to +G/Y.
RO-FLEX 22775F(AC) is used for AC control circuits. Core wires are red/white and numbered from 1 to +G/Y.
They comply with the various certification standards listed below, and the cable can be exported to China and many other countries.
【Certification Standards】
NBR Compulsory certification mark required for distribution and sales in Brazil
CCC Standards audited and certified by the Chinese government about whether the products conform to China’s national technical standards and whether they are acceptable for import
EAC Product standards required for export to Russia, Kazakhstan, Belarus, Armenia, Kyrgyz Republic
IEC International Electrotechnical Commission
CE A mark indicating that the specified product sold in the EU conforms to EU standards
UL Safety standards for the USA published by Underwriters Laboratories Inc., which is a U.S. security agency
c-UL Safety standards for Canada which UL evaluates based on the standards that are published by CSA
PSE Electrical appliance and material safety law in Japan
