Taiyo Cabletec Co., Ltd. SUNLIGHT SX LF
2026.03.28
SUNLIGHT SX LF is a multi-purpose twisted-pair shielded instrumentation cable designed for RS232C and various signal communications as well as internal wiring of electronic and electrical equipment. It uses stranded tinned copper conductors, heat-resistant PVC insulation, and a black PVC sheath with oil, heat, flame resistance, and flexibility. The braided shield with drain wire ensures high noise resistance. Complies with UL AWM STYLE 2936 and CSA AWM ⅡA. 2P and above types meet UL VW-1 and CUL FT1; 1P and 3C meet FT2. RoHS compliant (10 substances).
Product Features
- Application: Internal wiring of instrumentation, communication, and electronic equipment (RS232C compatible)
• Flexibility: Excellent workability with flexible PVC sheath
• Durability: Non-migratory to ABS/PS resins; resistant to chemicals, cold, water, and abrasion
• Environmental Resistance:
– Heat Resistance: Up to 80°C
– Oil Resistance: Oil-resistant PVC sheath
– Flame Retardance: UL VW-1 / CUL FT1 (2P+), FT2 (1P/3C)
– Noise Resistance: High shielding with braided shield + drain wire
– Low Migration: Suppresses plasticizer migration; R15 marking
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863)
Product Specifications
- Certifications: UL (AWM STYLE 2936), CUL (CSA AWM ⅡA)
• Standards Compliance:
– UL 758, CSA C22.2 No.210
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 150V
– Temperature: 80°C
• Flame Retardant Standards:
– 2P to 50P: UL VW-1, CUL FT1
– 1P, 3C: FT2
• Others:
– Includes drain wire
– Standard length: 100m (cutting available for 5P and above)

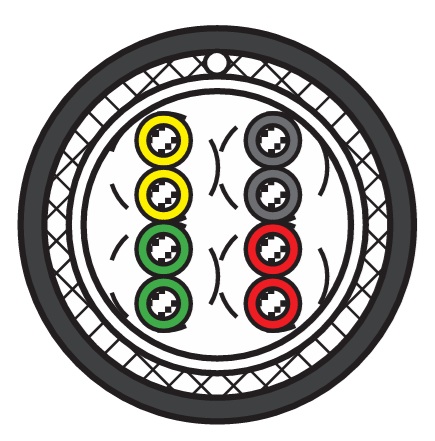

– Pair count: Up to 50 pairs; identification chart and construction diagram included
