Taiyo Cabletec Co., Ltd. FAMV-5E26SB (BK)

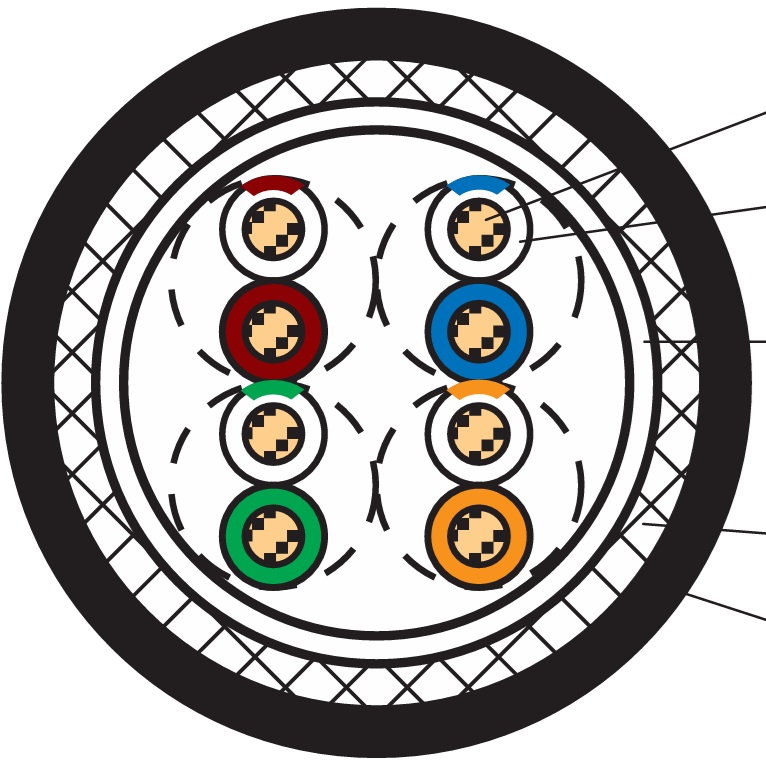

FAMV-5E26SB (BK) is a CAT5e-compliant, high-flex, shielded Ethernet cable ideal for high-speed motion cable carrier wiring. It uses 30/0.08mm stranded soft copper conductors, heat-resistant cross-linked PE insulation, and a flexible, oil- and heat-resistant black PVC sheath. The shield consists of a braid of tin-plated soft copper wire, offering enhanced noise resistance. Rated at 30V and 80°C, it complies with UL STYLE 20276, CUL FT1, and CSA standards. It has demonstrated durability of over 50 million cycles in cable carrier tests and complies with the RoHS Directive (10 substances).
Product Features
- Application: Ethernet (CAT5e) wiring in cable carriers under high-speed motion
• Flexibility: High flex performance with fine stranded conductor and flexible PVC sheath
• Durability: Proven over 50 million cycles in cable carrier tests
• Environmental Resistance:
– Heat Resistance: Rated for 80°C
– Oil Resistance: Oil-resistant PVC sheath
– Flame Retardance: Complies with UL VW-1 / CUL FT1
– Noise Resistance: High shielding performance with tin-plated copper braid
• Other: Complies with CAT5e frequency and transmission characteristics; length markings included
• Safety: Compliant with RoHS Directive (2011/65/EU・2015/863) for 10 substances
Product Specifications
- Certifications: UL, CUL, CSA certified
• Standards Compliance:
– UL AWM STYLE 20276 (U.S. standard)
– CSA C22.2 No.210 (Canadian standard)
– RoHS 2011/65/EU, 2015/863 (environmental regulation)
• Ratings:
– Voltage: 30V
– Temperature: 80°C
• Flame Retardant Standards:
– UL VW-1 (U.S. flame test)
– CUL FT1 (Canadian flame test)
For inquiries about this cable, please contact the following.
Japan Cable Sales Center
Bell Denki co., Itd.
contact@japan-wirecable.com
