Taiyo Cabletec Co., Ltd. HKIV LF

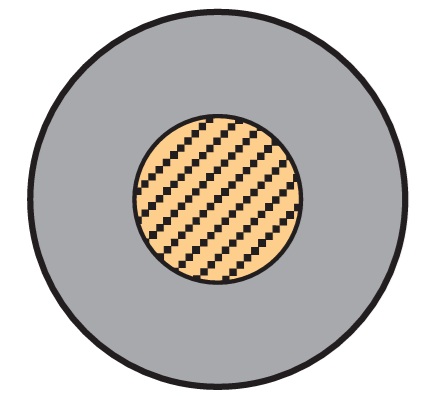

HKIV LF is a heat-resistant PVC insulated single-core wire for internal fixed wiring and high-temperature areas in electrical equipment rated up to 600V. It uses flexible stranded copper conductors and heat-resistant PVC insulation. Compared to KIV, it supports approximately 1.2 times higher allowable current and conforms to JIS C 3316. It complies with the Electrical Appliance and Material Safety Act (0.75–100 mm²) and RoHS Directive (10 substances). “R15” is printed on the surface, making it a trusted standard for control panels and internal equipment wiring in Japan.
Product Features
- Application: Internal fixed wiring and high-temperature wiring in equipment rated up to 600V
• Flexibility: Flexible conductor enables excellent installability
• Durability: 1.2× higher current capacity than KIV; high-reliability JIS-compliant structure
• Environmental Resistance:
– Heat Resistance: Up to 75°C
– Oil Resistance: Basic resistance due to PVC insulation
– Flame Retardance: JIS C 3005 (4.26.2 b) compliant; ≥8 mm² meets UL VW-1 equivalent
– Non-Migration: Suppresses plasticizer migration; safe for ABS/PS resins
• Safety: RoHS compliant (2011/65/EU・2015/863), “R15” printed
Product Specifications
- Certifications: Compliant with Electrical Appliance and Material Safety Act (0.75–100 mm²)
• Standards Compliance:
– JIS C 3316 (conductor structure)
– JIS C 3005 (4.26.2 b) (flame retardance)
– RoHS 2011/65/EU・2015/863 (10 substances)
• Ratings:
– Voltage: 600V
– Temperature: 75°C
• Flame Standards:
– JIS C 3005 (4.26.2 b)
– UL VW-1 equivalent (for ≥8 mm²)
• Others:
– Size: 0.5–200 mm² (0.5 mm², 150–200 mm² not PSE covered)

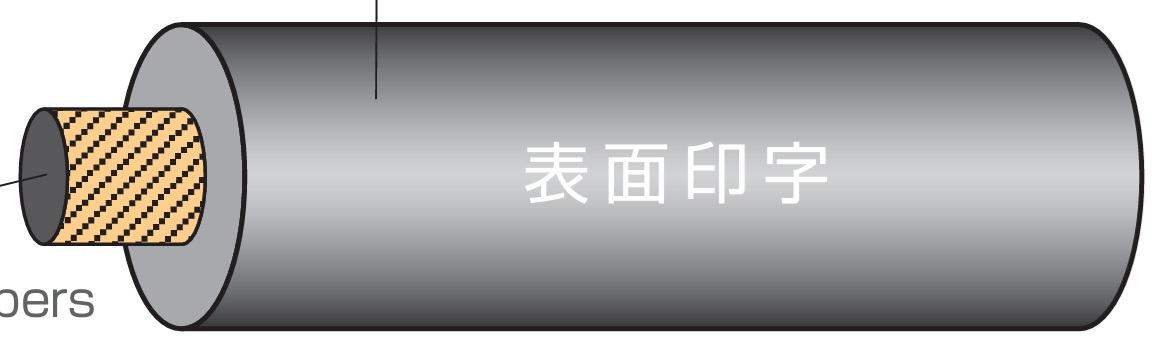

– Surface Marking: “HKIV <PS>E ○○ TAINETSU TAIYO CABLETEC [Year] LFV R15”
– Standard Length: Inquire with sales
