Taiyo Cabletec Co., Ltd. HK-SB/20276XL LF

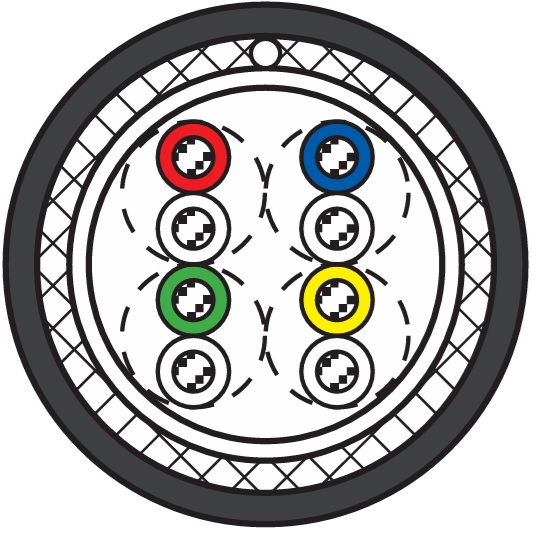

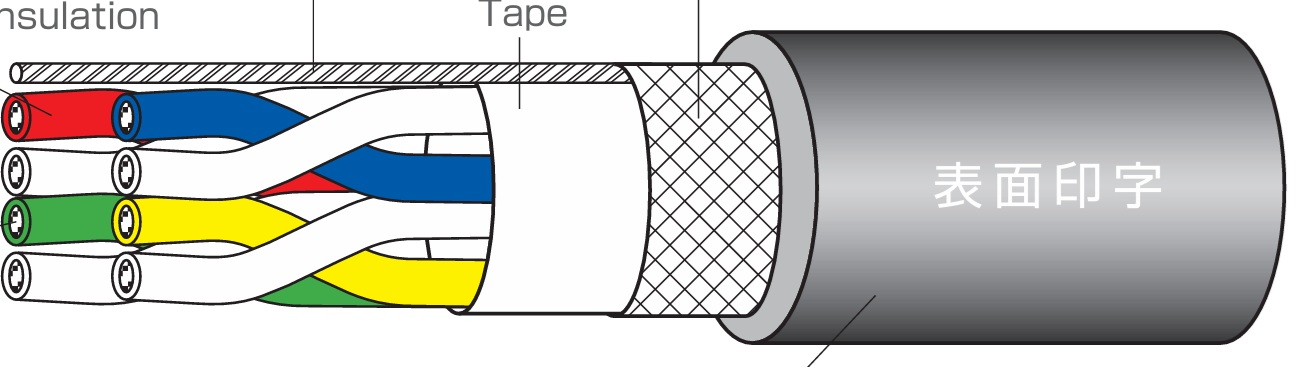

HK-SB/20276XL LF is a shielded fixed wiring cable compatible with high-speed serial communication such as RS485 and RS422. It uses cross-linked polyethylene (XLPE) for insulation, offering excellent heat and dielectric resistance. The black sheath is made of oil-, heat-, and flexibility-resistant PVC, and the cable includes low-dust fillers and a drain wire. Rated at 30V and 80°C, it complies with UL AWM STYLE 20276 and CSA C22.2 No.210. It meets flame retardant standards UL VW-1 and CUL FT1, and is compliant with the RoHS Directive (10 substances). “R15” printed on the sheath indicates RoHS compliance.
Product Features
- Application: Shielded cable for fixed wiring in RS485/RS422 systems
• Flexibility: Easy handling with flexible PVC and stranded tinned conductor
• Durability: Ensures long-term reliability in fixed wiring applications
• Environmental Resistance:
– Heat Resistance: Rated up to 80°C
– Oil Resistance: High oil resistance for industrial use with PVC sheath
– Flame Retardance: Conforms to UL VW-1 / CUL FT1
– Noise Resistance: Braided shield provides excellent noise suppression
– Non-Migration: Suppresses plasticizer migration, preventing equipment contamination
• Other: Includes low-dust filler and drain wire
• Safety: RoHS compliant (2011/65/EU・2015/863, 10 substances)
Product Specifications
- Certifications: UL, CUL certified (Categories: AVLV2, AVLV8)
• Standards Compliance:
– UL AWM STYLE 20276 (UL 758)
– CSA C22.2 No.210 (AWM ⅡA)
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 30V
– Temperature: 80°C
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
• Insulation: Cross-linked polyethylene (XLPE)
• Sheath: Oil-, heat-, flexible PVC (black)
• Other: Includes drain wire, R15 marking, standard length 100m (custom lengths available)
