Taiyo Cabletec Co., Ltd. HP-SB/20276SR LF
2026.05.30
HP-SB/20276SR LF is a shielded fixed wiring cable for electronic equipment, ideal for signal lines such as RS232C. It uses stranded tinned soft copper conductors, semi-rigid PVC for insulation, and a black PVC sheath with oil, heat, and flexibility resistance. The braided shield structure enhances noise resistance, making it optimal for use with press-fit half-pitch connectors. Rated at 30V and 80°C, it complies with UL AWM STYLE 20276 (UL 758) and the flame retardant standard UL VW-1, as well as the RoHS Directive (10 substances).
Product Features
- Application: Fixed wiring cable for RS232C signal lines and half-pitch connectors
• Flexibility: Flexible PVC sheath ensures excellent workability
• Durability: Stable structure for long-term fixed installation
• Environmental Resistance:
– Heat Resistance: Up to 80°C
– Oil Resistance: Sheath material suitable for industrial environments
– Flame Retardance: UL VW-1 compliant
– Noise Resistance: Braided tinned copper + tape shield structure
– Non-Migration: Suppresses plasticizer migration to prevent damage to nearby equipment
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking
Product Specifications
- Certification: UL certified (UL AWM STYLE 20276)
• Standards Compliance:
– UL 758 (AWM)
– RoHS 2011/65/EU, 2015/863
• Ratings:
– Voltage: 30V
– Temperature: 80°C
• Flame Retardant Standard:
– UL VW-1 (U.S.)
• Insulation: Semi-rigid PVC
• Sheath: Oil-, heat-, flexible PVC (black)

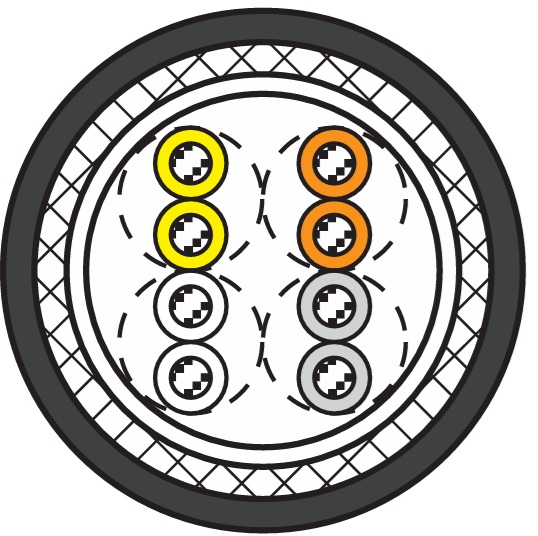

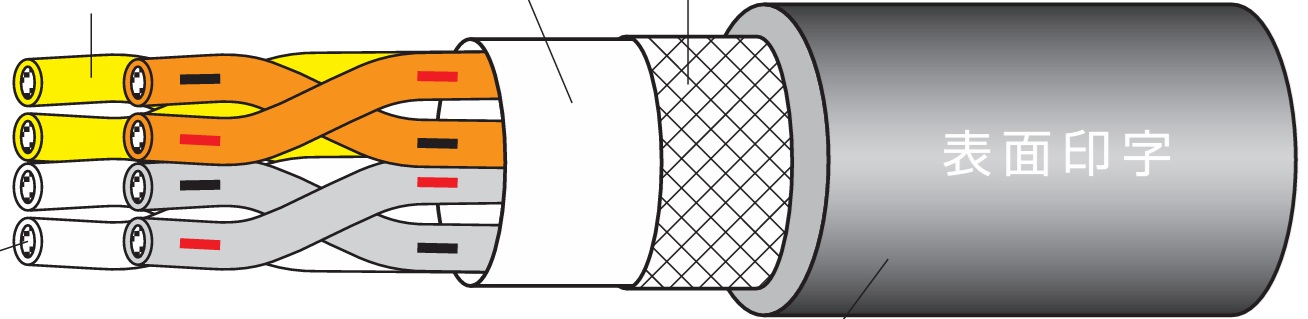

• Structure: Braided tinned copper shield + tape
• Standard Length: 100m
