Taiyo Cabletec Co., Ltd. SL-TVV(STD5)/SL-TVV(STD4) LF
2026.05.31

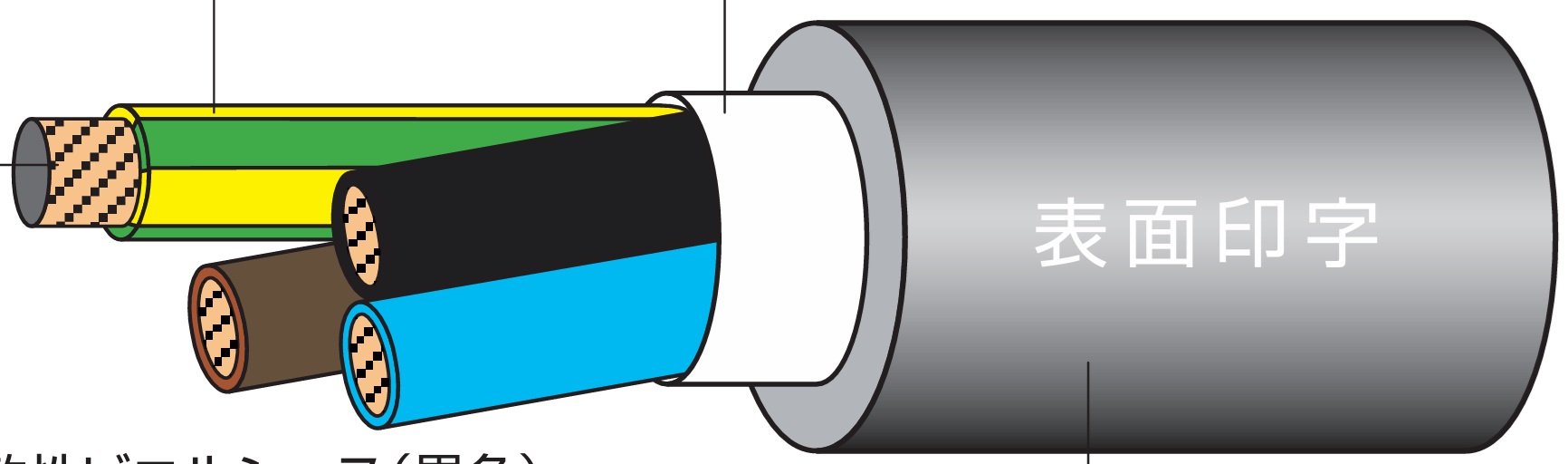

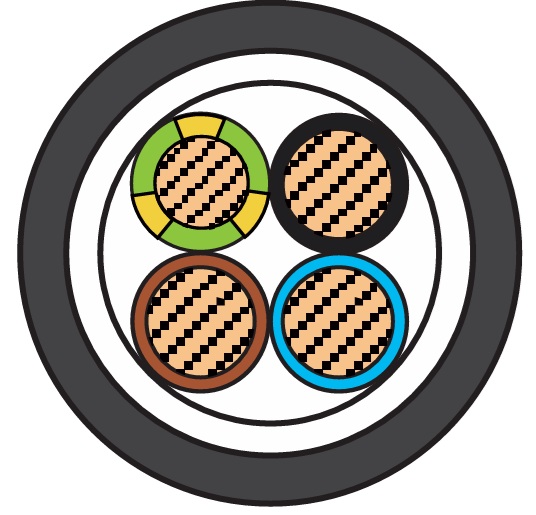

SL-TVV(STD5)/SL-TVV(STD4) LF is a multi-core fixed wiring cable for power supply and electronic device wiring. It uses stranded soft copper conductors, heat-resistant PVC insulation, and a black PVC sheath with oil, heat, and flexibility resistance. Y/G ground wires are supported. “R15” marking indicates RoHS compliance. It conforms to UL AWM STYLE 2501, CSA AWM ⅡA, CCC, CE, and PSE (2–7 cores). Rated up to 600V / 105°C. Flame retardance complies with UL VW-1 / CUL FT1 and GB/T18380 vertical flame test.
Product Features
- Application: Multi-core cable for electronic equipment wiring and power supply (fixed use)
• Flexibility: Excellent workability with flexible PVC sheath
• Durability: Suitable for long-term fixed wiring with 105°C rating
• Environmental Resistance:
– Heat Resistance: Up to 105°C
– Oil Resistance: High oil-resistant PVC suitable for industrial use
– Flame Retardance: UL VW-1 / CUL FT1 / GB/T18380 vertical test passed
– Low Migration: RoHS PVC suppresses plasticizer migration
– Noise Resistance: Basic shielding performance with minimal structure (non-shielded)
• Safety: RoHS compliant (2011/65/EU・2015/863), R15 marking; PSE certified (2–7 cores)
Product Specifications
- Certifications: UL (AWM STYLE 2501), CUL (AWM ⅡA), CCC, CE, PSE (2–7 cores)
• Standards Compliance:
– UL 758, CSA C22.2 No.210
– IEC60227-6 (60227 IEC 71c), IEC60228, IEC60332-1
– GB/T5023.6, GB/T18380
– Electrical Appliance and Material Safety Act (JIS C 3102)
– RoHS 2011/65/EU, 2015/863 (10 substances)
• Ratings:
– Voltage: 300/500V or 450/750V (depending on cores/structure)
– Temperature: Up to 105°C (UL/CSA), 70°C (IEC/CCC)
• Flame Retardant Standards:
– UL VW-1 (U.S.)
– CUL FT1 (Canada)
– GB/T18380 (China)
• Others:
– SL-TVV(STD5): 2–7 cores
– SL-TVV(STD4): 8 cores or more
– Y/G wire included (green base with yellow stripe), 100m standard length (cutting available)
